Door Step Light: Removal

WARNING: This page is about a different car, the 2015 Subaru Outback and 2015 Subaru Legacy. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the ground terminal from battery sensor. <Ref. to BATTERY , NOTE, Repair Contents.>
  2. Remove the light assembly - door step.
    CAUTION: When using a flat tip screwdriver, apply protective tape or cloth and be careful not to cause damage.
    1. Insert a flat tip screwdriver into the slit of the light assembly - door step to release the claw.
    2. Disconnect the connector and remove the light assembly - door step and the bulb.

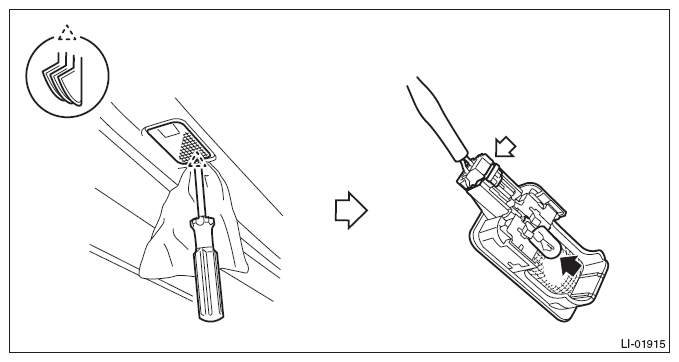

      Fig 1: Removing Light Assembly - Door Step And Bulb
      G10277267Courtesy of SUBARU OF AMERICA, INC.
