Door Switch: Removal

WARNING: This page is about a different car, the 2015 Subaru Outback and 2015 Subaru Legacy. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the ground terminal from battery sensor. <Ref. to BATTERY , NOTE, Repair Contents.>
  2. Remove the switch assembly - door.
    1. Remove the screws, and pull out the switch assembly - door toward you.
    2. Disconnect the connector and remove the switch assembly - door.

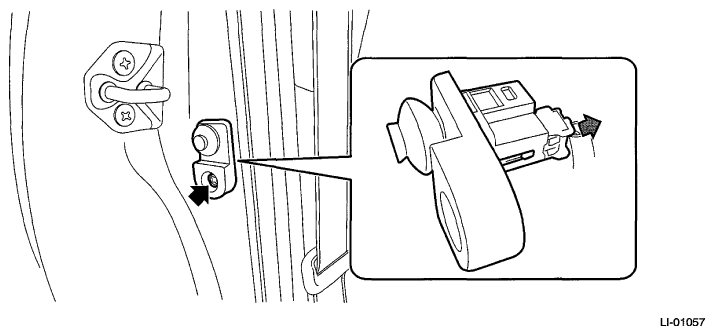

      Fig 1: Removing Door Switch
      G06653509Courtesy of SUBARU OF AMERICA, INC.
