Headlight Assembly: Removal

WARNING: This page is about a different car, the 2015 Subaru Outback and 2015 Subaru Legacy. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Do not perform work with wet hands, because there is a possibility of electrical shock.

Disconnect the ground terminal from battery sensor. <Ref. to BATTERY , NOTE, Repair Contents.>
Remove the bumper face - front. <Ref. to REMOVAL , Front Bumper.>

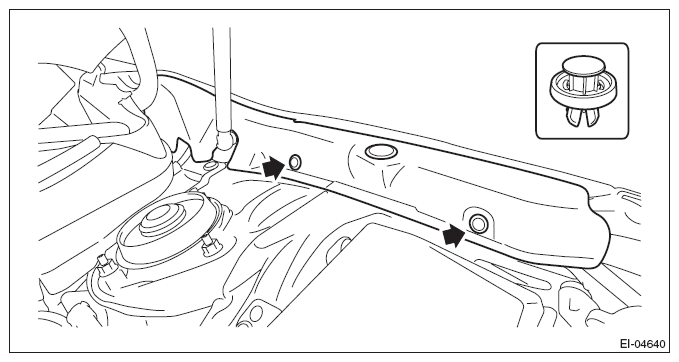

Remove the cover - front fender.
1. Remove the clip.
2. Release the claws, and then remove the cover - front fender UPR.

  Fig 1: Removing Cover - Front Fender UPR
  Courtesy of SUBARU OF AMERICA, INC.

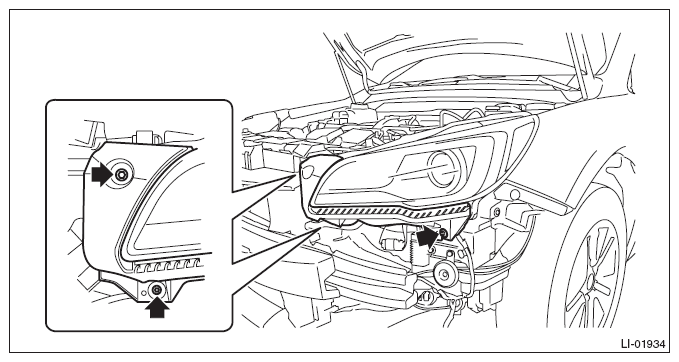

Remove the bolts, and then remove the bracket - front bumper corner.

Fig 2: Removing Bracket - Front Bumper Corner
Courtesy of SUBARU OF AMERICA, INC.

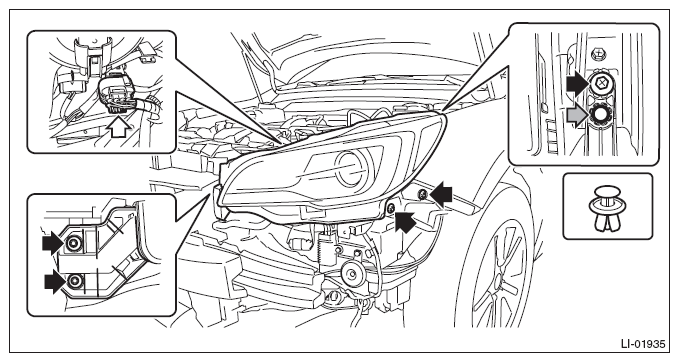

Remove the light assembly - head.
1. Disconnect the connector.
2. Remove the bolts and clips, and remove the light assembly - head.

  Fig 3: Removing Light Assembly - Head
  Courtesy of SUBARU OF AMERICA, INC.
