Outback Model
WARNING: This page is about a different car, the 2015 Subaru Outback and 2015 Subaru Legacy. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the ground terminal from battery sensor. <Ref. to
BATTERY
, NOTE, Repair Contents.>
- Remove the trim panel - rear gate. <Ref. to
REMOVAL
, Rear Gate Trim.>
- Remove the roof spoiler. <Ref. to
REMOVAL
, Roof Spoiler.>

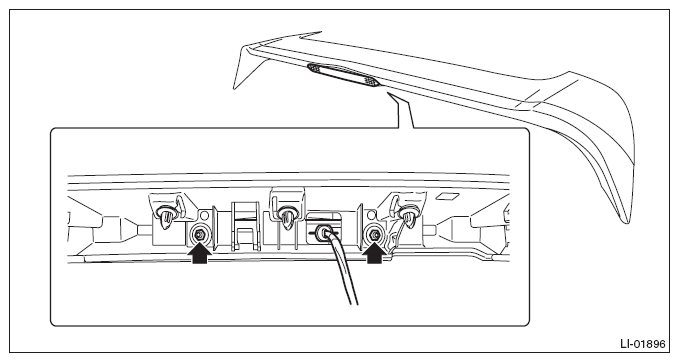

- Remove the nuts and remove the light assembly - high-mounted.
Courtesy of SUBARU OF AMERICA, INC.
