Rear Height Sensor: Removal

WARNING: This page is about a different car, the 2015 Subaru Outback and 2015 Subaru Legacy. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Always remove the sensor assembly - headlight beam leveler before removing any parts related to the suspension.
  1. Disconnect the ground terminal from battery sensor. <Ref. to BATTERY , NOTE, Repair Contents.>
  2. Lift up the vehicle.
  3. Remove the rear wheel on the left side.
  4. Remove the sensor assembly - headlight beam leveler.
    CAUTION: Do not disassemble the sensor and lever.
    1. Disconnect the connector.
    2. Remove the nuts, and remove the sensor assembly - headlight beam leveler.

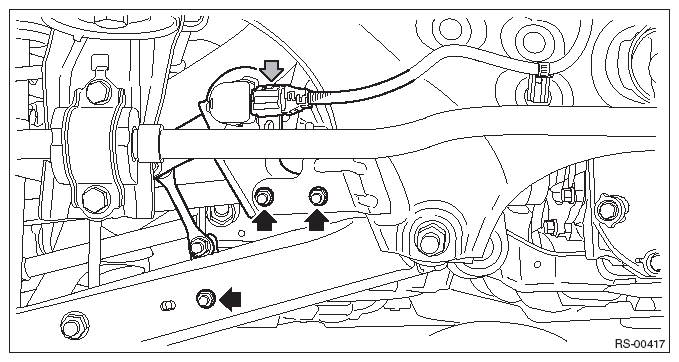

      Fig 1: Locating Rear Height Sensor Assembly Nuts
      G08315118Courtesy of SUBARU OF AMERICA, INC.
