Relay and Fuse: Location
WARNING: This page is about a different car, the 2015 Subaru Outback and 2015 Subaru Legacy. However, it is still accessible from the selected car via links, so may be relevant.

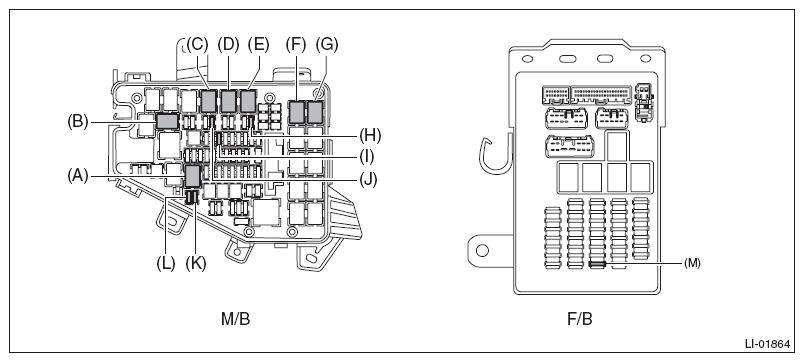

| Main fuse box (M/B) | Front fog light relay | (A) |
| Headlight relay HI (RH) | (B) | |
| Tail and illumination relay | (C) | |
| Headlight relay LO | (D) | |
| Headlight relay HI (LH) | (E) | |
| Daytime running light relay (RH) | (F) | |
| Daytime running light relay (LH) | (G) | |
| Fuse 10 A (headlight HI (LH)) | (H) | |
| Fuse 10 A (headlight HI (RH)) | (I) | |
| Fuse 10 A (license light (LH/RH), rear combination light (LH/RH)) | (J) | |
| Fuse 10 A (front fog light (LH), SRF CM) | (K) | |
| Fuse 10 A (front fog light (RH), SRF CM) | (L) | |
| Fuse & relay box (F/B) | Fuse 7.5 A (stop light and brake switch) | (M) |
NOTE:
For other related fuses, refer to the wiring diagram. <Ref. to
SYSTEM WIRING DIAGRAMS
- Legacy or SYSTEM WIRING DIAGRAMS
- Outback, Power Supply Circuit.>
