Spot Map Light: Removal

WARNING: This page is about a different car, the 2015 Subaru Outback and 2015 Subaru Legacy. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

The spot map light is a single unit with the overhead console or stereo camera cover. Replace the overhead console or stereo camera cover if faulty.
Do not remove the spot map light if removing the bulb only.

Disconnect the ground terminal from battery sensor. <Ref. to BATTERY , NOTE, Repair Contents.>
Remove the overhead console. (Models without EyeSight)
1. Release the clips and claws.
2. Disconnect the connector, and remove the overhead console.

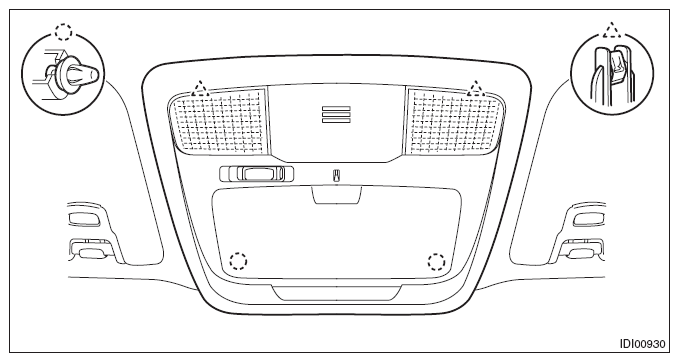

  Fig 1: Releasing Clips And Claws
  Courtesy of SUBARU OF AMERICA, INC.
Remove the stereo camera cover assembly. (Models with EyeSight) <Ref. to REMOVAL , Stereo Camera.>
Release the claws, then detach the spot map light cover and bulb.
CAUTION: When using a flat tip screwdriver, apply protective tape or cloth and be careful not to cause damage.

Fig 2: Detaching Spot Map Light Cover And Bulb
Courtesy of SUBARU OF AMERICA, INC.
