Section 62 (Entertainment System): Audio: Removal

WARNING: This page is about a different car, the 2015 Subaru Outback and 2015 Subaru Legacy. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the ground terminal from battery sensor. <Ref. to BATTERY , NOTE, Repair Contents.>
Remove the center grille assembly. <Ref. to CENTER GRILLE ASSEMBLY , REMOVAL, Air Vent Grille.>
Remove the heater control assembly. <Ref. to REMOVAL , Control Panel.>
Remove the audio assembly.
1. Remove the screws and clips.
2. Disconnect the connector and remove the audio assembly.

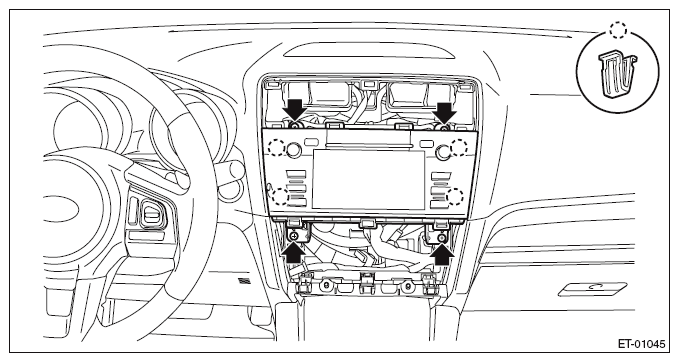

  Fig 1: Locating Audio Assembly Screws And Clips
  Courtesy of SUBARU OF AMERICA, INC.
