External Connection Terminal: Removal

WARNING: This page is about a different car, the 2015 Subaru Outback and 2015 Subaru Legacy. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the ground terminal from battery sensor. <Ref. to BATTERY , NOTE, Repair Contents.>
Remove the heater control assembly. <Ref. to REMOVAL , Control Panel.>
Remove the console box assembly. <Ref. to REMOVAL , Console Box.>
Release the claws, and then remove the panel center LWR.

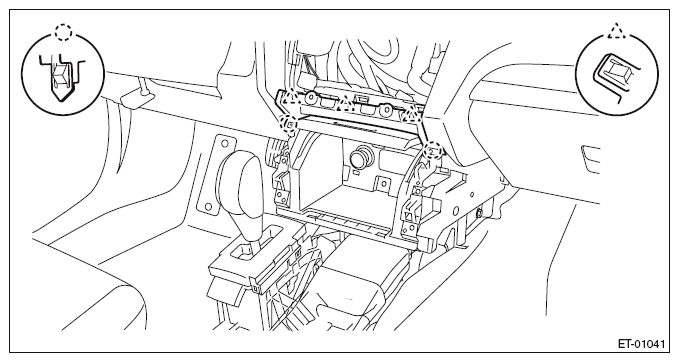

Fig 1: Identifying Panel Center LWR And Claws
Courtesy of SUBARU OF AMERICA, INC.
Remove the screws and remove the pocket assembly - CTR.

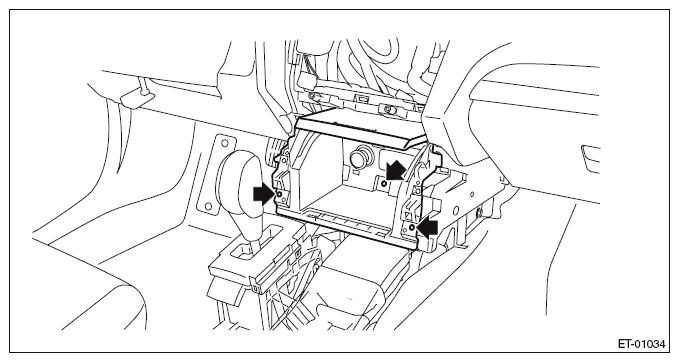

Fig 2: Locating CTR Pocket Assembly Screws
Courtesy of SUBARU OF AMERICA, INC.
While pressing the claw, press it in from the rear to remove the unit assembly - AUX.

Fig 3: Removing AUX Unit Assembly
Courtesy of SUBARU OF AMERICA, INC.
