STI Model

• Release lever shaft
• Contact surface of release lever and bearing
• Transmission main shaft spline
• Contact surface of release bearing and clutch release bearing guide

Grease:

NICHIMOLY N-130 or equivalent

1. Attach the release bearing to the transmission.
2. Insert the release lever into the release bearing tab.

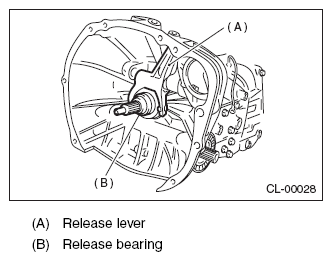

   Fig 1: Identifying Release Lever And Bearing

   Courtesy of SUBARU OF AMERICA, INC.
3. Insert the release lever shaft into the release lever.
   NOTE: Make sure the cut portion of the release lever shaft comes into contact with the spring pin.
   Fig 2: Inserting Release Lever Shaft Into Release Lever

   Courtesy of SUBARU OF AMERICA, INC.
4. Tighten the plugs.

   Tightening torque:

   48 N.m (4.9 kgf-m, 35.4 ft-lb)

   Fig 3: Tightening Plugs

   Courtesy of SUBARU OF AMERICA, INC.
5. Check the bearing for smooth movement by operating the release lever.
6. Apply grease to the contact surface of the release lever and operating cylinder.

   Grease:

   NICHIMOLY N-130 or equivalent

7. Apply grease to splines.

   Grease:

   NICHIMOLY N-130 or equivalent

   Fig 4: Identifying Spline

   Courtesy of SUBARU OF AMERICA, INC.
8. Install the transmission assembly. <Ref. to INSTALLATION , Manual Transmission Assembly.>
