Except For STI Model

  1. Remove the transmission assembly from the vehicle. <Ref. to REMOVAL , Manual Transmission Assembly.>
  2. Remove the dust cover.
    Fig 1: Identifying Release Lever And Dust Cover
    G10269318Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the lever spring from the pivot with a screwdriver by accessing it through the clutch housing release lever hole. Then remove the release lever and release bearing as a unit.

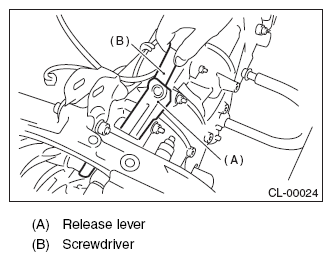

Fig 2: Removing Lever Spring From Pivot Using Screwdriver
G10269319Courtesy of SUBARU OF AMERICA, INC.
