Engine Control System (Diagnostics) (Except Hybrid): Electrical Component Location: Location: Sensor

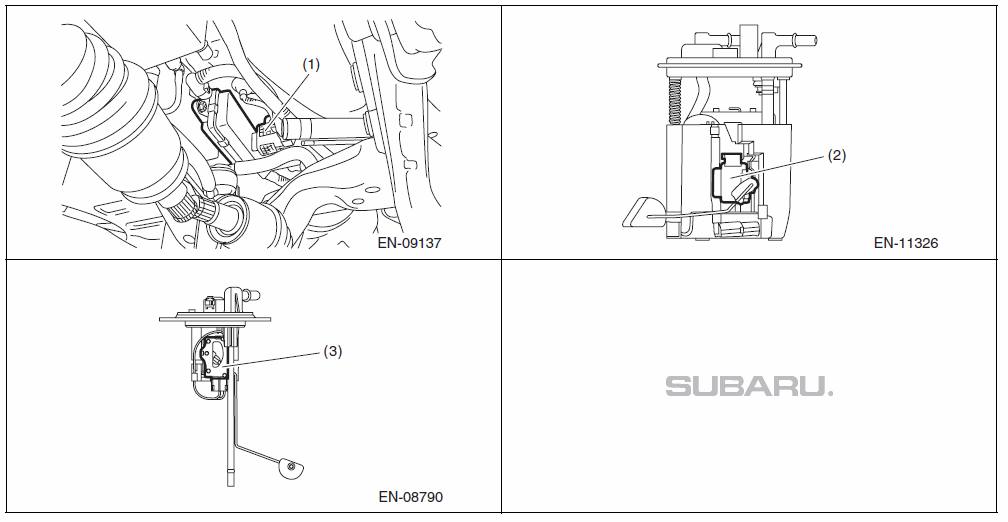

Fig 1: Electrical Sensors Location (1 Of 5)

Courtesy of SUBARU OF AMERICA, INC.

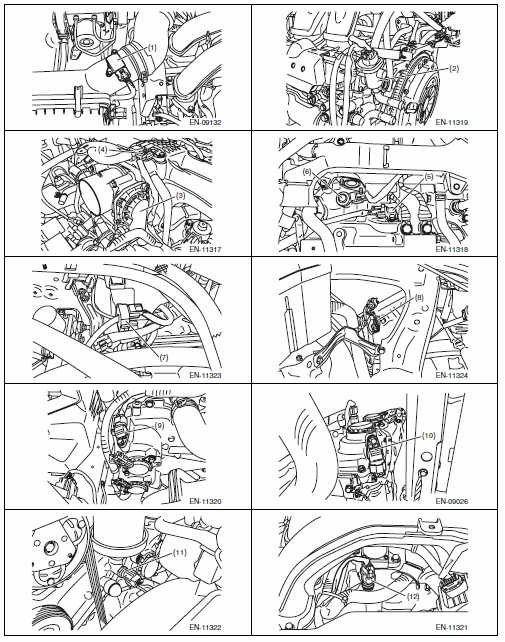

Fig 2: Electrical Sensors Location (2 Of 5)

Courtesy of SUBARU OF AMERICA, INC.

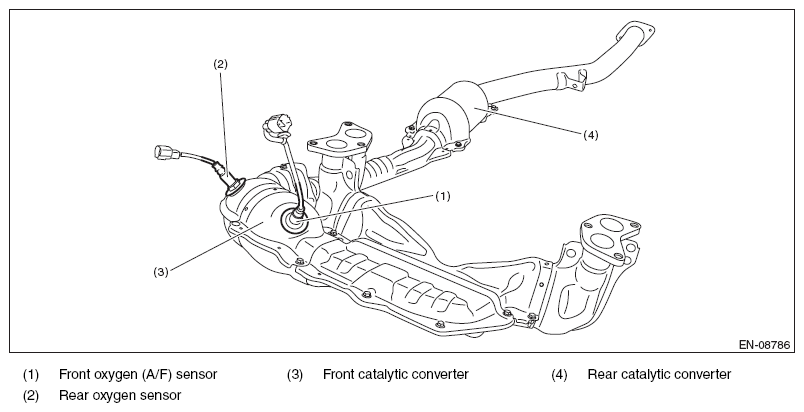

Fig 3: Electrical Sensors Location (3 Of 5)

Courtesy of SUBARU OF AMERICA, INC.

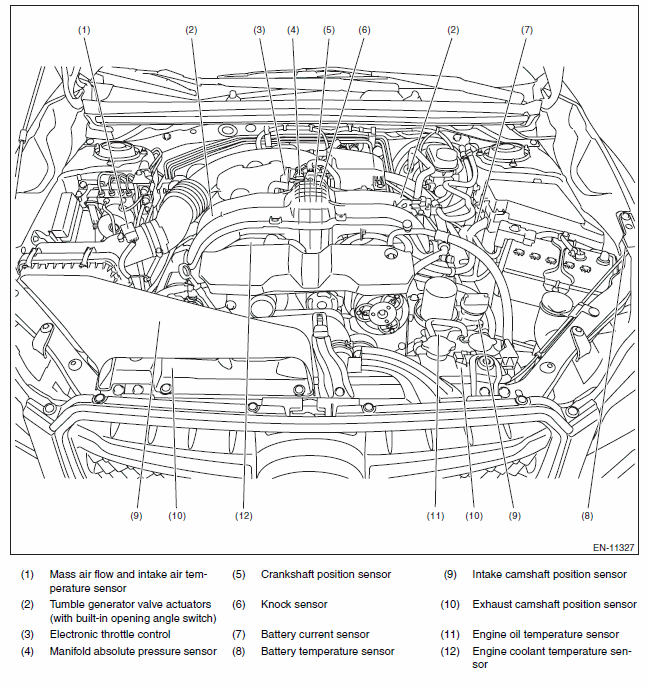

Fig 4: Electrical Sensors Location (4 Of 5)

Courtesy of SUBARU OF AMERICA, INC.

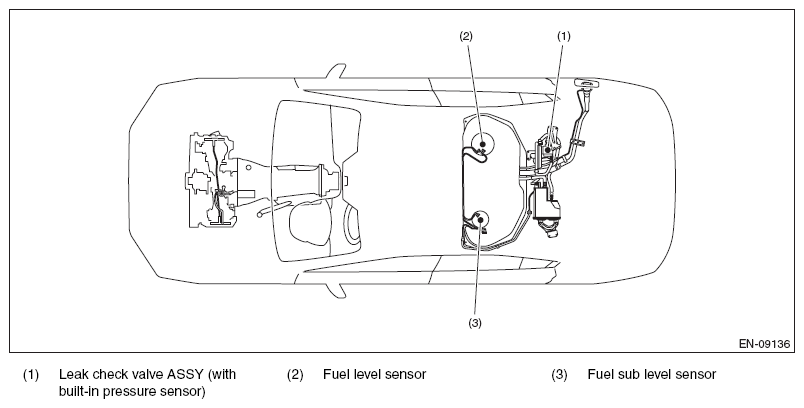

Fig 5: Electrical Sensors Location (5 Of 5)

Courtesy of SUBARU OF AMERICA, INC.
