Front Seat
- Manual seat LH
Tightening torque: N.m (kgf-m, ft-lb)
T1: 6 (0.61, 4.4)
T2: 15 (1.53, 11.1)
T3: 38 (3.87, 28.0)
T4: 52 (5.3, 38.4)
T5: 53 (5.4, 39.1)

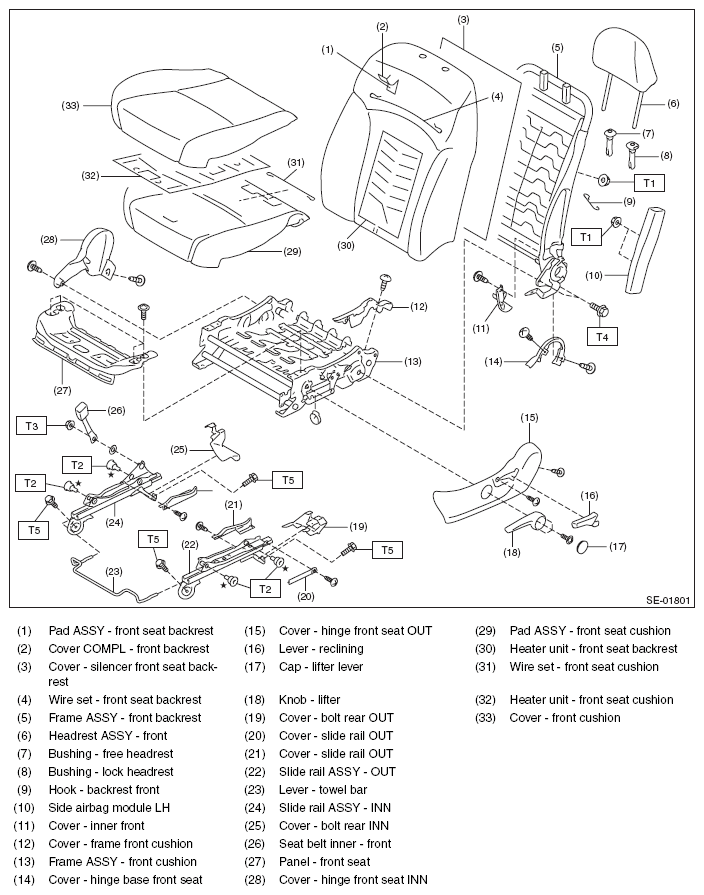

- Manual seat RH
Tightening torque: N.m (kgf-m, ft-lb)
T1: 6 (0.61, 4.4)
T2: 15 (1.53, 11.1)
T3: 38 (3.87, 28.0)
T4: 52 (5.3, 38.4)
T5: 53 (5.4, 39.1)
