Relay and Fuse: Location

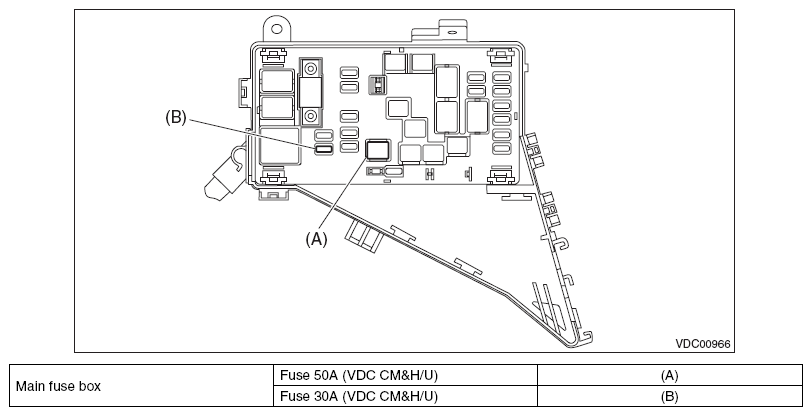

Fig 1: Relay And Fuse Location
G10323764Courtesy of SUBARU OF AMERICA, INC.
Main fuse box Fuse 50A (VDC CM&H/U) (A)
Fuse 30A (VDC CM&H/U) (B)
NOTE: For other related fuses, refer to the wiring diagram. < Ref. to the appropriate SYSTEM WIRING diagram article, Power Supply Circuit. >
