Section 15 (Engine Cooling System): Radiator: Installation

WARNING: This page is about a different car, the 2015 Subaru XV Crosstrek and 2015 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.
  1. Attach the radiator lower cushion to the radiator lower bracket.

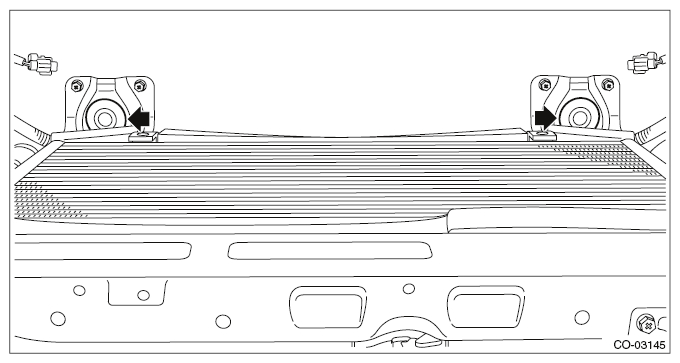

    Fig 1: Locating Radiator Lower Cushion
    G09476466Courtesy of SUBARU OF AMERICA, INC.
  2. Install the radiator to vehicle.
    NOTE: Make pins on the lower side of radiator be fitted into the radiator lower cushions.
  3. Install the radiator upper brackets.

    Tightening torque:

    12 N.m (1.2 kgf-m, 8.9 ft-lb)

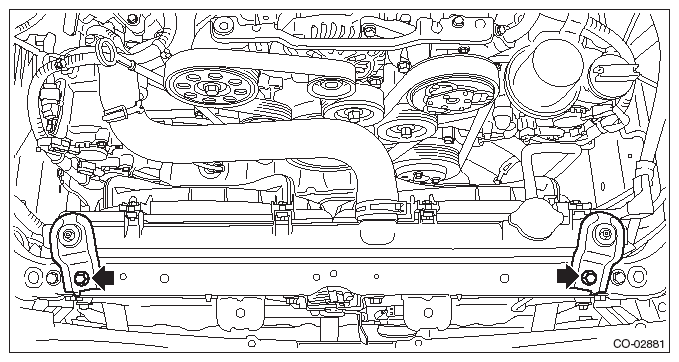

    Fig 2: Locating Radiator Upper Brackets Mounting Bolts
    G08316168Courtesy of SUBARU OF AMERICA, INC.
  4. Connect the radiator inlet hose to the water pipe assembly.

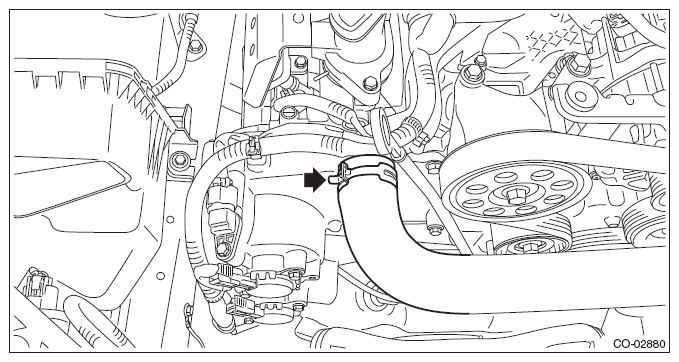

    Fig 3: Locating Radiator Inlet Hose Clip
    G08315768Courtesy of SUBARU OF AMERICA, INC.
  5. Connect the connector (A) to the main fan motor assembly and the connector (B) to the sub fan motor assembly.

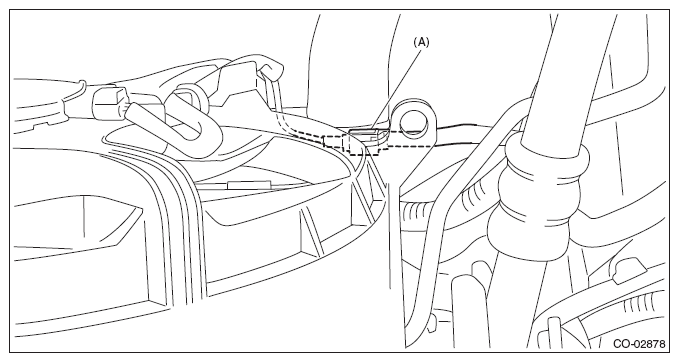

    Fig 4: Identifying Main Fan Motor Assembly Connector
    G08315766Courtesy of SUBARU OF AMERICA, INC.

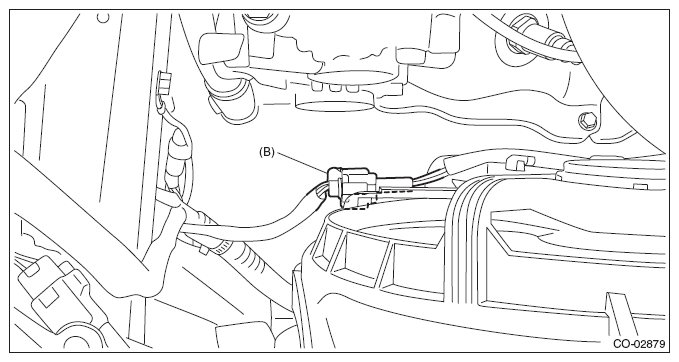

    Fig 5: Identifying Sub Fan Motor Assembly Connector
    G08315767Courtesy of SUBARU OF AMERICA, INC.
  6. Install the reservoir tank. < Ref. to INSTALLATION , Reservoir Tank.>
  7. Install the air intake boot No. 1. (HEV model) < Ref. to AIR INTAKE BOOT NO. 1 , INSTALLATION, Air Intake Boot.>
  8. Install the air intake duct. < Ref. to INSTALLATION , Air Intake Duct.> < Ref. to INSTALLATION , Air Intake Duct.>
  9. Lift up the vehicle.
  10. Connect the radiator outlet hose to thermostat cover.

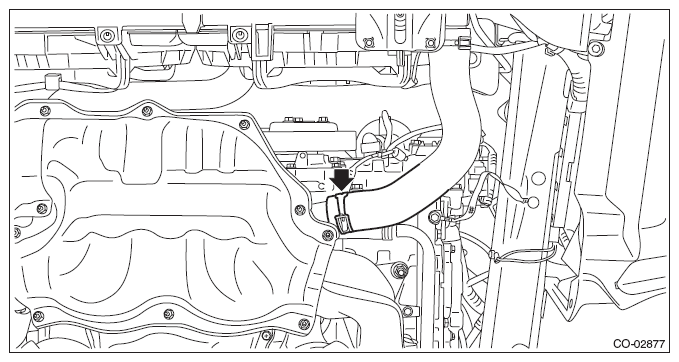

    Fig 6: Locating Thermostat Cover Radiator Outlet Hose
    G08315765Courtesy of SUBARU OF AMERICA, INC.
  11. Install the under cover. < Ref. to INSTALLATION , Front Under Cover.>
  12. Lower the vehicle.
  13. Attach the bracket - plate (A).

    Tightening torque:

    7.5 N.m (0.8 kgf-m, 5.5 ft-lb)

  14. Attach the grille bracket.

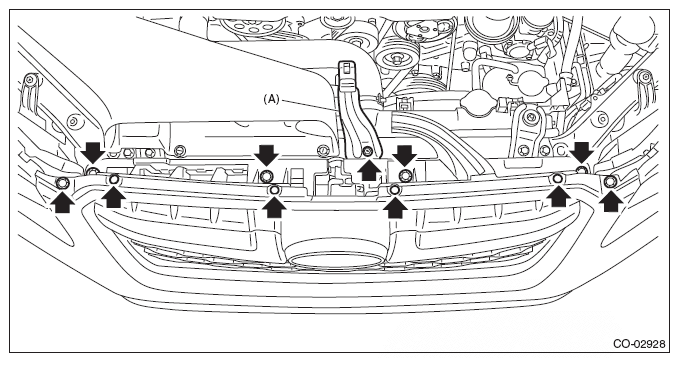

    Fig 7: Locating Grille Bracket Clips
    G08315763Courtesy of SUBARU OF AMERICA, INC.
  15. Install the V-belt cover. (Gasoline engine model)

    Tightening torque:

    6.4 N.m (0.7 kgf-m, 4.7 ft-lb)

    Fig 8: Locating V-Belt Covers Mounting Bolt
    G08316879Courtesy of SUBARU OF AMERICA, INC.
  16. Install the collector cover. (HEV model)
  17. Connect the battery ground terminal. < Ref. to BATTERY , NOTE, Note.>
  18. Fill engine coolant. < Ref. to FILLING OF ENGINE COOLANT , REPLACEMENT, Engine Coolant.>
