Rear Disc Brake Assembly: Disassembly

WARNING: This page is about a different car, the 2015 Subaru XV Crosstrek and 2015 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Be careful not to allow foreign matter to enter the brake hose connector.

Remove mud and foreign matter from the caliper body assembly.
Remove the piston boot from caliper body cylinder.

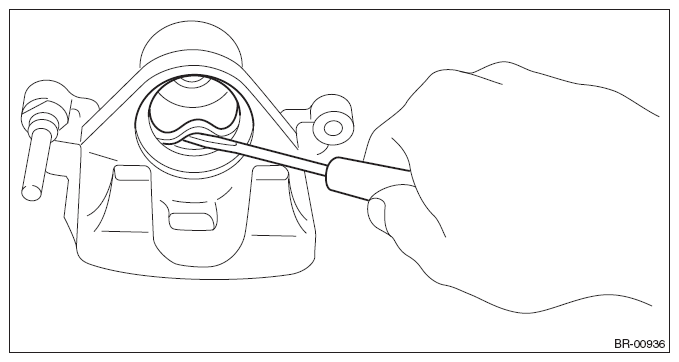

Fig 1: Removing Piston Boot From Caliper Body Cylinder
Courtesy of SUBARU OF AMERICA, INC.
Remove the piston - disc brake.
1. Place a wooden block in the caliper body assembly as shown in the figure to prevent the piston - disc brake from jumping out and being damaged.
2. Using an air gun, gradually apply compressed air via the brake hose installation hole to push out the piston - disc brake.

  Fig 2: Removing Piston Of Disc Brake
  Courtesy of SUBARU OF AMERICA, INC.
Remove the piston seal from caliper body cylinder.
CAUTION: Do not damage the cylinder and piston seal groove.

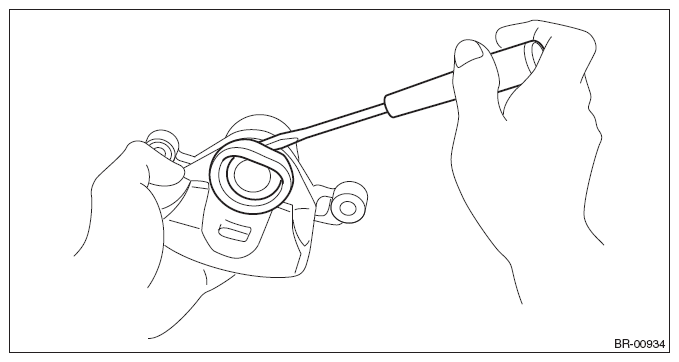

Fig 3: Removing Piston Seal From Caliper Body Cylinder
Courtesy of SUBARU OF AMERICA, INC.
Remove the guide pin - rear brake, lock pin - rear brake, lock pin - sleeve, and pin boot from the support - rear disc brake.

Fig 4: Identifying Guide Pin, Lock Pin And Sleeve Of Rear Disc Brake Assembly
Courtesy of SUBARU OF AMERICA, INC.
