Stop Light Switch: Removal

WARNING: This page is about a different car, the 2015 Subaru XV Crosstrek and 2015 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the ground cable from battery. < Ref. to BATTERY , NOTE, Note.>
    NOTE: For the 12 volt engine restart battery of HEV model, disconnect the ground terminal from 12V engine restart battery sensor.
  2. Remove the cover assembly - instrument panel LWR driver. < Ref. to REMOVAL , Instrument Panel Lower Cover.>
  3. Remove the nuts to remove the knee airbag module and disconnect the harness connector. < Ref. to KNEE AIRBAG MODULE , PROCEDURE, Airbag Connector.>
    Fig 1: Locating Stop Light Switch
    G08316330Courtesy of SUBARU OF AMERICA, INC.
  4. Remove the switch - stop light.
    1. Disconnect the switch - stop light connector.
    2. Remove the switch - stop light by turning it counterclockwise.

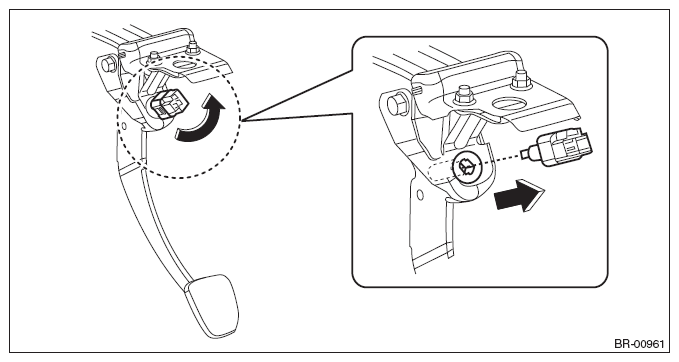

      Fig 2: Removing Switch Of Stop Light
      G08314881Courtesy of SUBARU OF AMERICA, INC.
