Front Fog Light Assembly: Installation

WARNING: This page is about a different car, the 2015 Subaru XV Crosstrek and 2015 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.

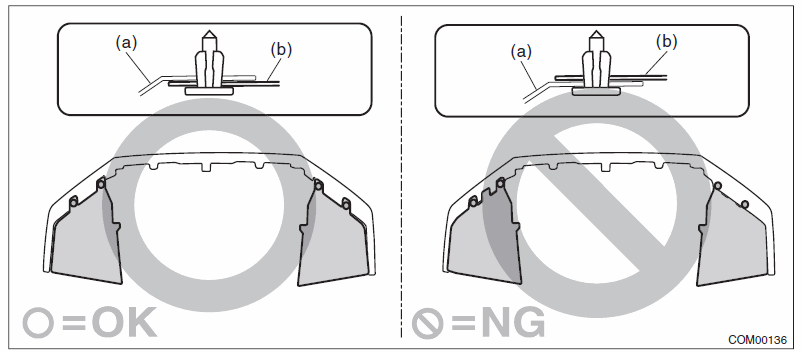

CAUTION: Install the mud guard - front so that the front end of the mud guard (b) comes outside the bumper face - front (a).

Fig 1: Installing Mud Guard

Courtesy of SUBARU OF AMERICA, INC.

Install each part in the reverse order of removal.
Tightening torque:

Fog light assembly - front: 7.5 N.m (0.76 kgf-m, 5.5 ft-lb)
Adjust the fog light beam. < Ref. to FOG LIGHT AIMING , ADJUSTMENT, Front Fog Light Assembly.>
