Section 45 (Lighting System): General Description: Specification

WARNING: This page is about a different car, the 2015 Subaru XV Crosstrek and 2015 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.

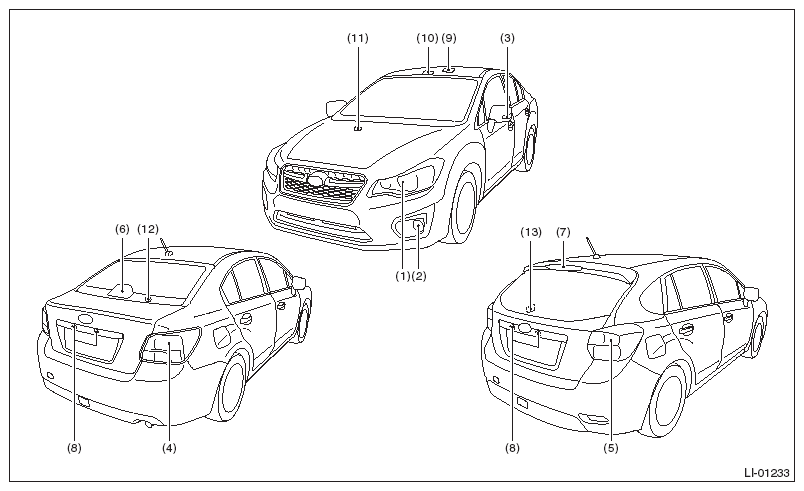

Fig 1: Identifying Lighting System Components Locations

Courtesy of SUBARU OF AMERICA, INC.

(1)	Headlight	Low beam (halogen type)	12 V - 55 W
		Low beam (HID type)	12 V - 35 W
		High beam	12 V - 60 W
		Front turn signal light	12 V - 21 W
		Parking light	12 V - 5 W
		Side marker light	12 V - 5 W
(2)	Front fog light		12 V - 24 W
(3)	Side turn signal light		12 V - 1.1 W (LED)
(4)	Rear combination light (4 door model)	Tail & side marker/stop light	12 V - 5/21 W
		Turn signal light	12 V - 21 W
		Back-up light	12 V - 16 W
(5)	Rear combination light (5 door model/XV model)	Tail/stop light	12 V - 5/21 W
		Back-up light	12 V - 16 W
		Turn signal light	12 V - 21 W
		Side marker light	12 V - 5 W
	Rear combination light (HEV model)	Tail light	12 V - 5 W
		Stop light	12 V - 2.0 W (LED)
		Back-up light	12 V - 16 W
		Turn signal light	12 V - 21 W
		Side marker light	12 V - 5 W
(6)	High-mounted stop light (4 door model)		12 V - 21 W
(7)	High-mounted stop light (5 door model/XV model)		12 V - 2.1 W (LED)
(8)	License plate light		12 V - 5 W
(9)	Room light		12 V - 8 W
(10)	Spot map light		12 V - 8 W
(11)	Glove box light		12 V - 1.4 W
(12)	Trunk room light (4 door model)		12 V - 5 W
(13)	Luggage room light (5 door model/XV model)		12 V - 5 W
