Headlight Assembly: Installation

WARNING: This page is about a different car, the 2015 Subaru XV Crosstrek and 2015 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.

Install each part in the reverse order of removal.
Secure the flange section of the bumper face - front to the bracket - front bumper side.
CAUTION: Install the bumper face - front so that the front end of the under cover (b) comes inside the bumper face - front (a).

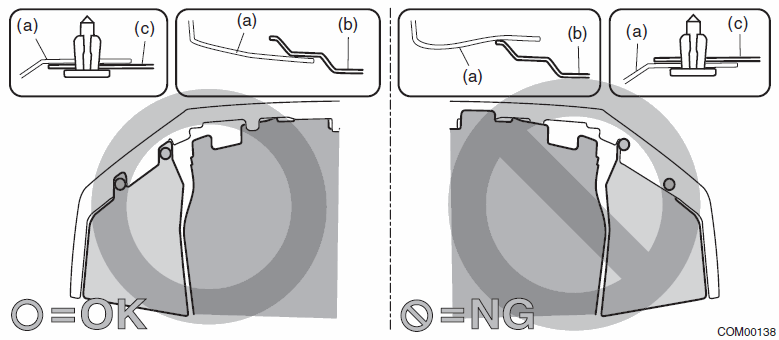

Fig 1: Identifying Under Cover And Bumper Face Condition - Front (Ok And Not Good)
Courtesy of SUBARU OF AMERICA, INC.

Tightening torque:

Light assembly - head: 7.5 N.m (0.76 kgf-m, 5.5 ft-lb)
Adjust the headlight beam and fog light beam.
- Adjust the headlight beam. < Ref. to HEADLIGHT BEAM ADJUSTMENT , ADJUSTMENT, Headlight Assembly.>
- Adjust the fog light beam. (Model with fog light) < Ref. to FOG LIGHT AIMING , ADJUSTMENT, Front Fog Light Assembly.>
