Headlight Assembly: Removal

WARNING: This page is about a different car, the 2015 Subaru XV Crosstrek and 2015 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
  • Do not perform work with wet hands, because there is a possibility of electrical shock.
  • The HID type uses very high voltages for the lighting circuit. Make sure that the power supply is turned OFF before working.
  1. Disconnect the ground cable from battery. < Ref. to BATTERY , NOTE, Note.>
    NOTE: For the 12 volt engine restart battery of HEV model, disconnect the ground terminal from 12V engine restart battery sensor.
  2. Remove the air intake duct. (When removing the right side of gasoline engine model) <Ref. to REMOVAL , Air Intake Duct.>
  3. Remove the clip, and remove the bracket - grille.
    CAUTION: To prevent damage to the bracket - grille, make sure to remove all clips.

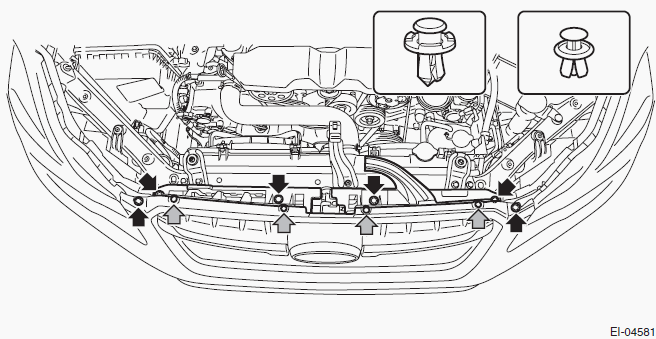

    Fig 1: Locating Air Intake Duct And Clips (Gasoline Engine Model)
    G00548498Courtesy of SUBARU OF AMERICA, INC.
  4. Remove the bumper face - front. <Ref. to REMOVAL , Front Bumper.>
  5. Remove the bolts and clips, and remove the bracket - front bumper corner.

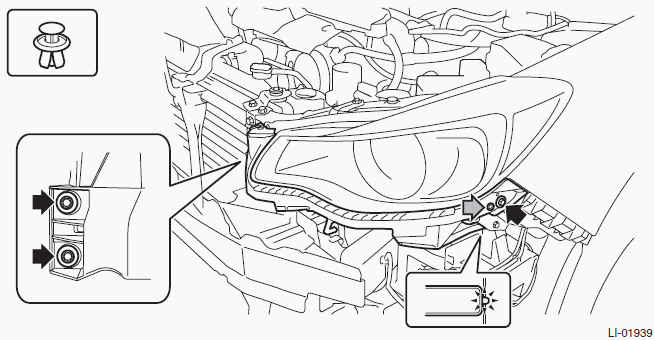

    Fig 2: Locating Headlight Assembly Bolts And Clips
    G00548499Courtesy of SUBARU OF AMERICA, INC.
  6. Remove the light assembly - head.
    1. Disconnect the connector.
    2. Remove the bolts and clips, and remove the light assembly - head.

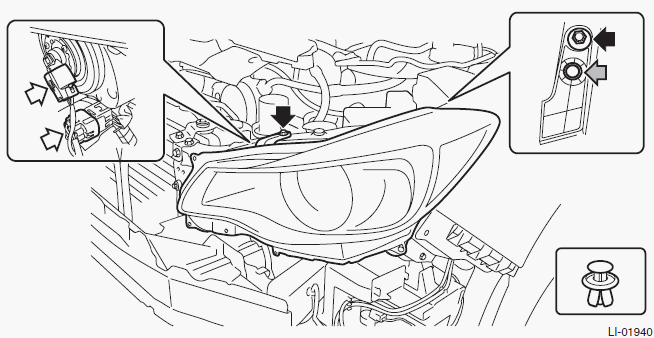

Fig 3: Locating Headlight Assembly Bolts And Clips
G00548500Courtesy of SUBARU OF AMERICA, INC.
