Front Strut

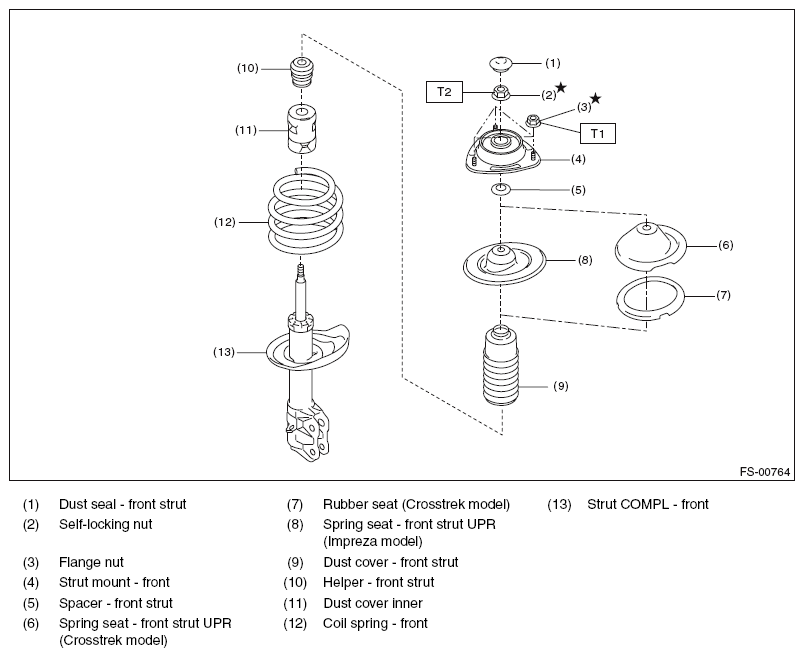

Fig 1: Exploded View Of Front Strut
G10323217

Tightening torque: N.m (kgf-m, ft-lb)

T1: 20 (2.04, 14.8)

T2: 55 (5.61, 40.6)
