Keyless Entry System

NOTE: Except for model with keyless access with push button start.

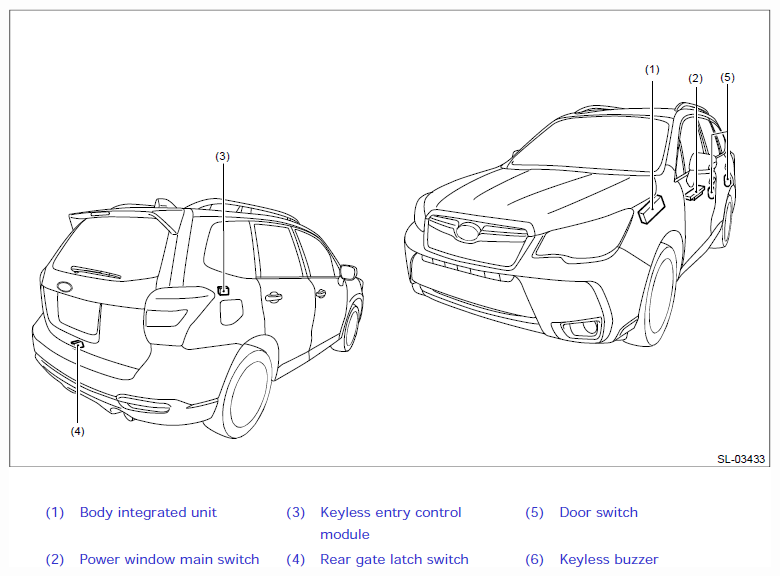

Fig 1: Identifying Keyless Entry System Component
G10408579Courtesy of SUBARU OF AMERICA, INC.
