Rear Seat Belt

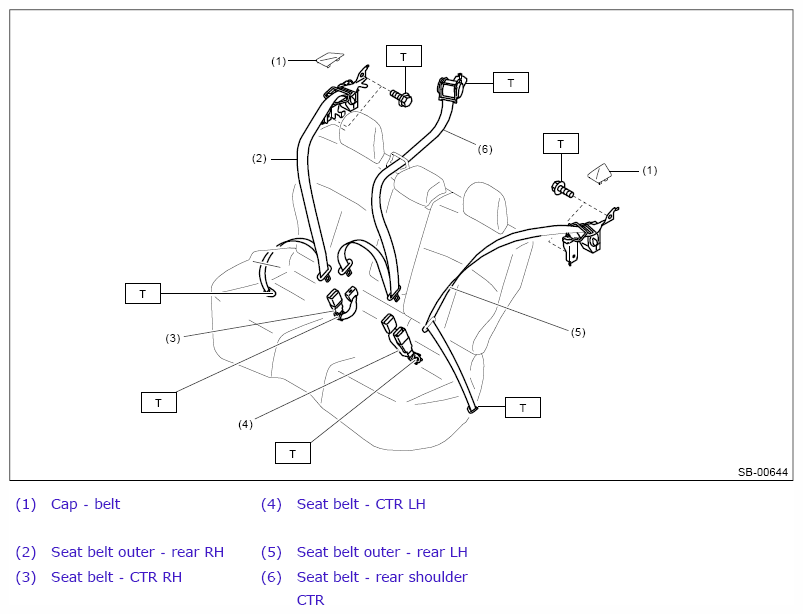

Fig 1: Exploded View Of Rear Seat Belt
G10408090Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T: 30 (3.06, 22.1)
