Fuel Filler Pipe

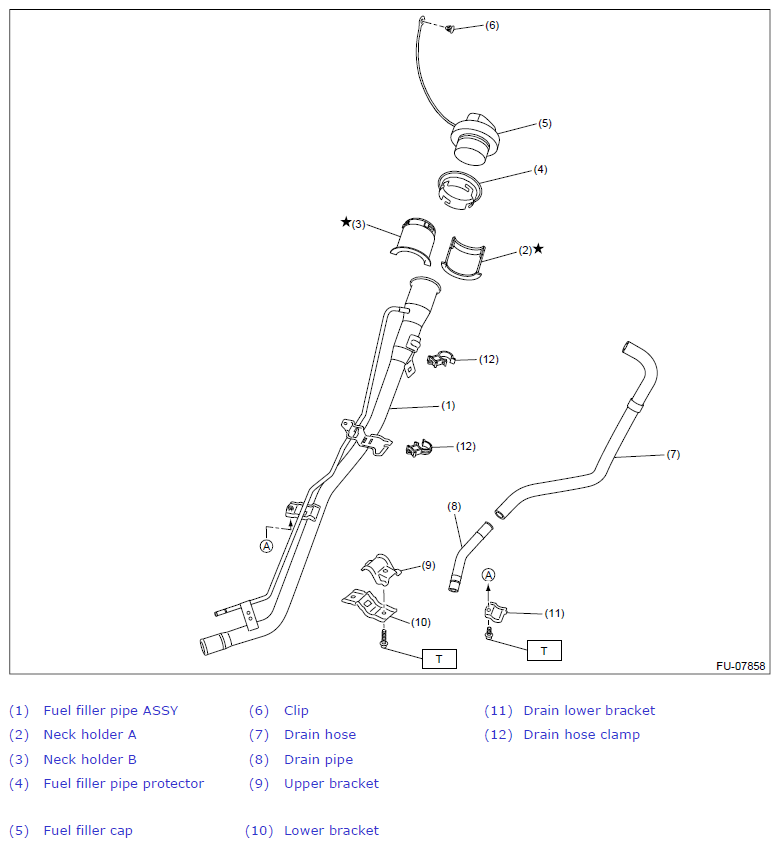

Fig 1: Exploded View Of Fuel Filler Pipe
G10402726Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T: 7.5 (0.8, 5.5)
