Control Module

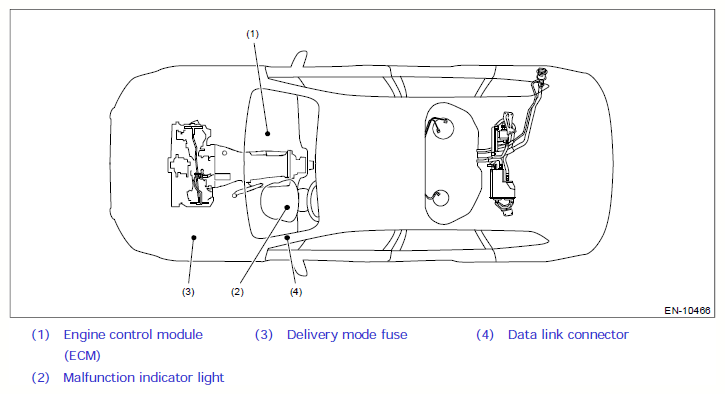

Fig 1: Identifying Engine Control Module Electrical Components (1 Of 2)
Courtesy of SUBARU OF AMERICA, INC.

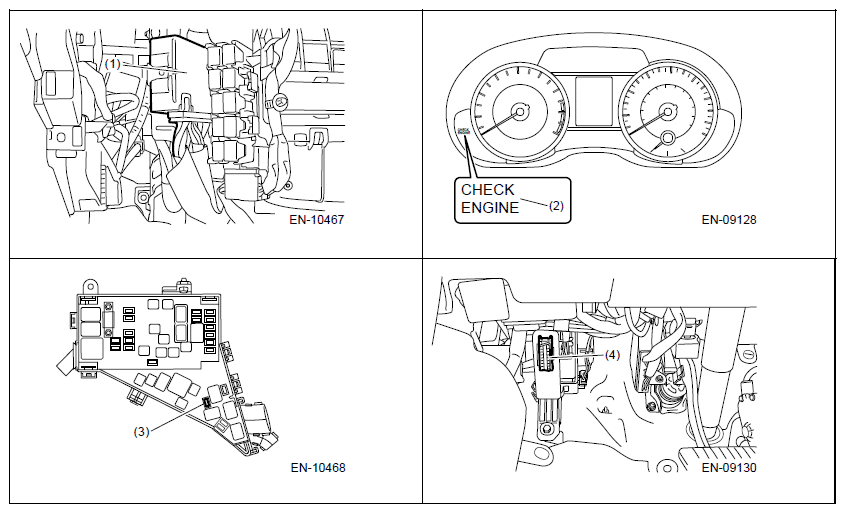

Fig 2: Identifying Engine Control Module Electrical Components (2 Of 2)
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
