General Description
>>
Components With Torque Specifications
>>
Fixed Glass (Outback Model)
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Fixed Glass (Outback Model)

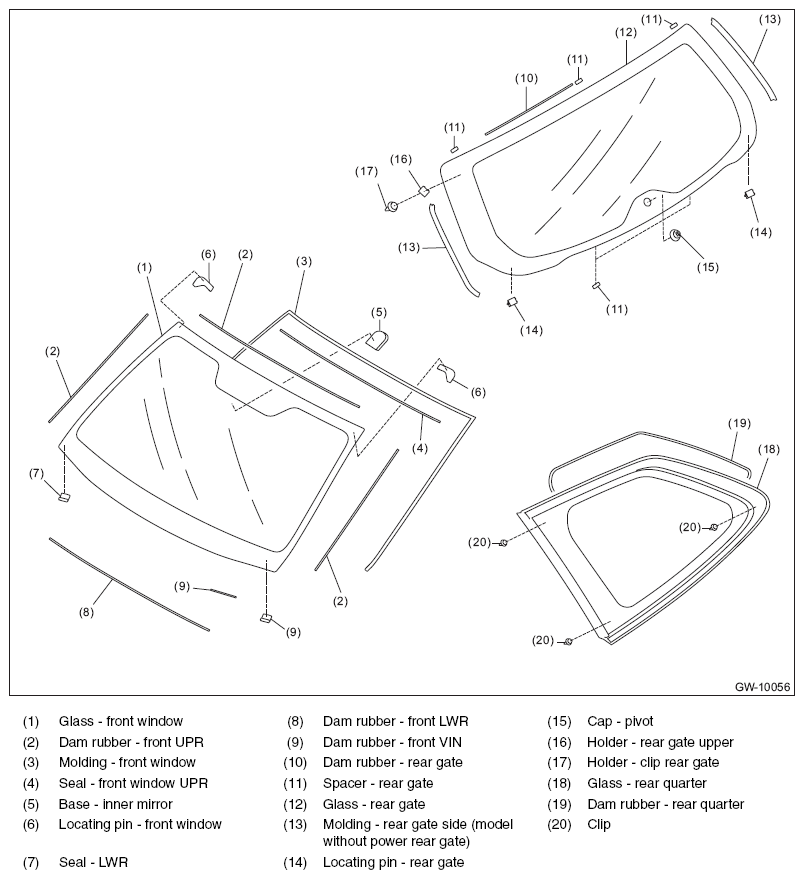

Fig 1: Exploded View Of Fixed Glass (Outback Model)
Courtesy of SUBARU OF AMERICA, INC.
