Continuously Variable Transaxle (CVT) (Diagnostics): Electrical Component Location: Location: Sensor
ENGINE TYPE FB

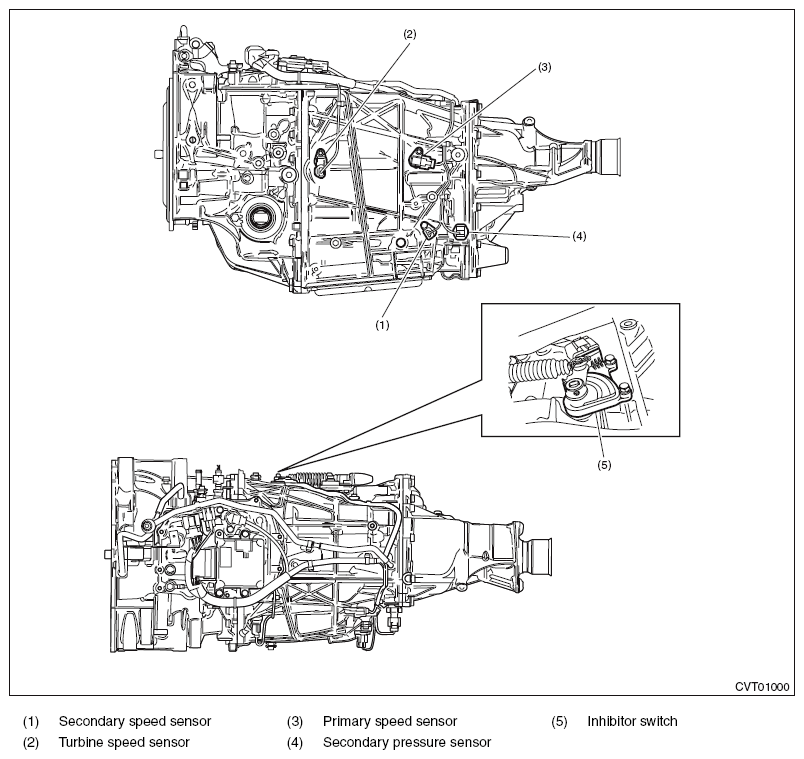

Fig 1: Identifying CVT Sensor - Engine Type FB
Courtesy of SUBARU OF AMERICA, INC.
ENGINE TYPE EZ

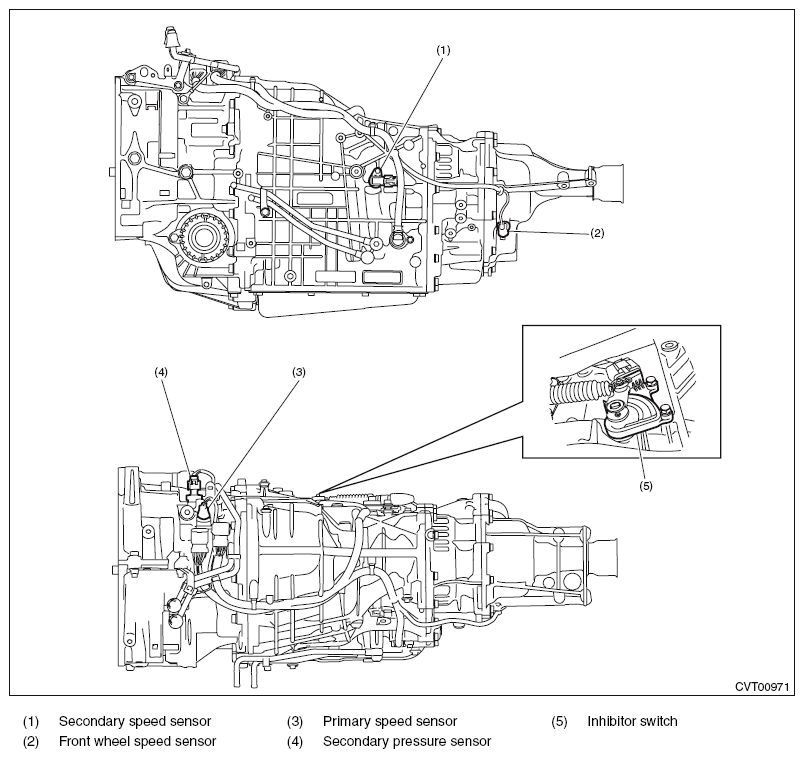

Fig 2: Identifying CVT Sensor - Engine Type EZ
Courtesy of SUBARU OF AMERICA, INC.
