Starting System & Charging System (WRX): Starter: Installation

Install in the reverse order of removal.

NOTE: Tighten the starter and bracket (a) together using the upper bolt securing the starter.

Tightening torque:

50 N.m (5.1 kgf-m, 36.9 ft-lb)

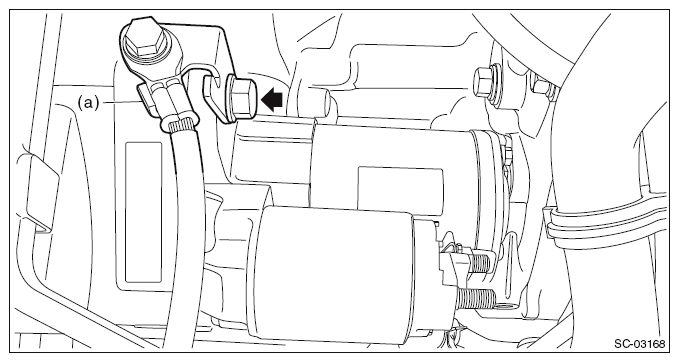

Fig 1: Locating Bolt At Top Of Starter

Courtesy of SUBARU OF AMERICA, INC.

NOTE: For the MT model, a bolt is used to the location (A).

Fig 2: Locating Nut And Bolt Of Starter

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque:

10 N.m (1.0 kgf-m, 7.4 ft-lb)

Fig 3: Locating Starter Nut

Courtesy of SUBARU OF AMERICA, INC.
