Cylinder Block 2

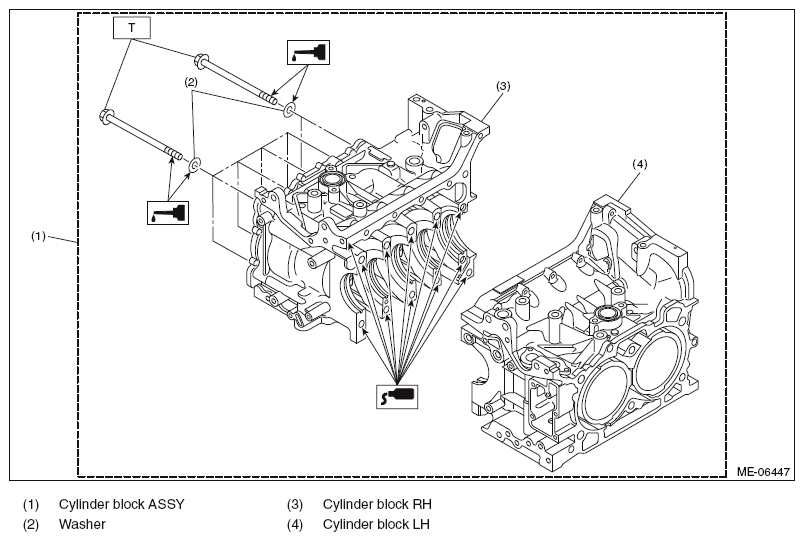

Fig 1: Exploded View Of Cylinder Block 2 With Torque Specification
G10291653Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T: < Ref. to  INSTALLATION  , Cylinder Block. >
