Cylinder Block

WARNING: This page is about a different car, the 2022 Subaru WRX. However, it is still accessible from the selected car via links, so may be relevant.

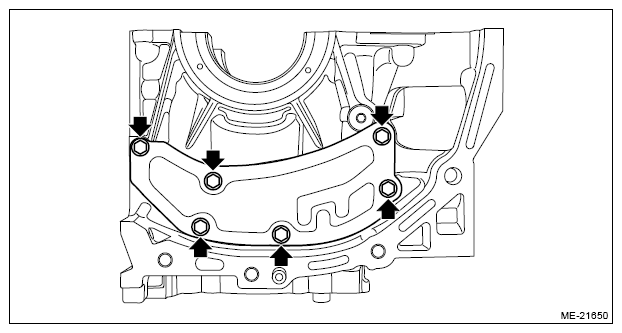

  1. Remove the oil separator cover from cylinder block RH.
    G13198977Courtesy of SUBARU OF AMERICA, INC.
  2. Remove the liquid gasket from cylinder block RH.

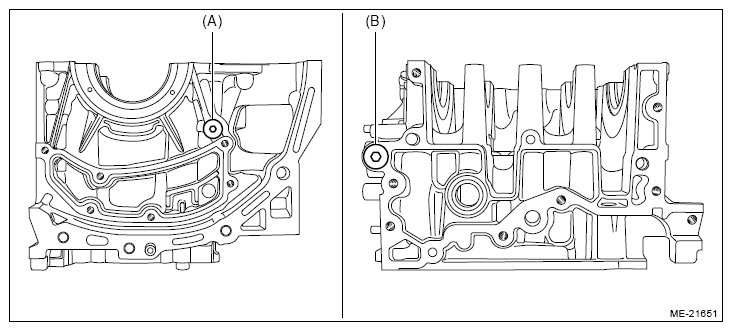

  3. Remove the cylinder block plug (A) and the main gallery plug (B) from cylinder block RH.
    NOTE:
    • Perform this procedure only when required.
    • After removing the parts, remove the liquid gasket from the thread holes of the cylinder block RH, and from the threaded portions of cylinder block plug and main gallery plug.
    G13198978Courtesy of SUBARU OF AMERICA, INC.
  4. Remove the cylinder block plate from cylinder block LH.
    G13198979Courtesy of SUBARU OF AMERICA, INC.
  5. Remove the bolt from cylinder block LH.
    G13198980Courtesy of SUBARU OF AMERICA, INC.

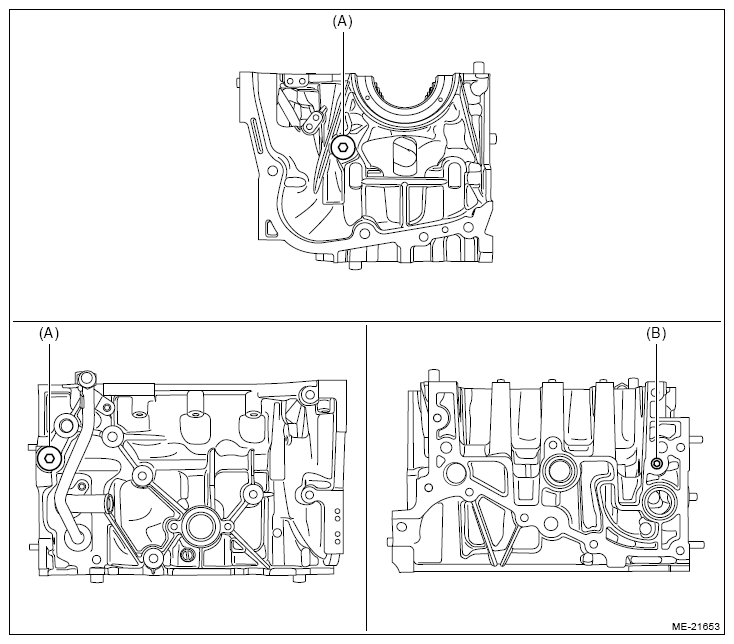

  6. Remove the main gallery plug (A) and plug (B) from cylinder block LH.
    NOTE:
    • Perform this procedure only when required.
    • After removing the parts, remove the liquid gasket from the thread holes of the cylinder block LH, threaded portion of main gallery plug and threaded portion of plug.
    G13198981Courtesy of SUBARU OF AMERICA, INC.
