Reverse Brake Assembly: Disassembly

WARNING: This page is about a different variant/trim than selected.

Remove the snap ring.
Remove the retaining plate, drive plate, driven plate and dish plate.

Fig 1: Identifying Retaining Plate, Drive Plate, Driven Plate And Dish Plate
Courtesy of SUBARU OF AMERICA, INC.
Set the ST1, ST2 and ST3 to intermediate case.
ST1 18762AA001 COMPRESSOR SPECIAL TOOL

ST2 18763AA000 COMPRESSOR SHAFT

ST3 18765AA000 COMPRESSOR SUPPORT

Fig 2: Setting ST1, ST2 And ST3 To Intermediate Case
Courtesy of SUBARU OF AMERICA, INC.
Compress the return spring using the set ST to remove the snap ring.

Fig 3: Compressing Return Spring Using Set ST
Courtesy of SUBARU OF AMERICA, INC.

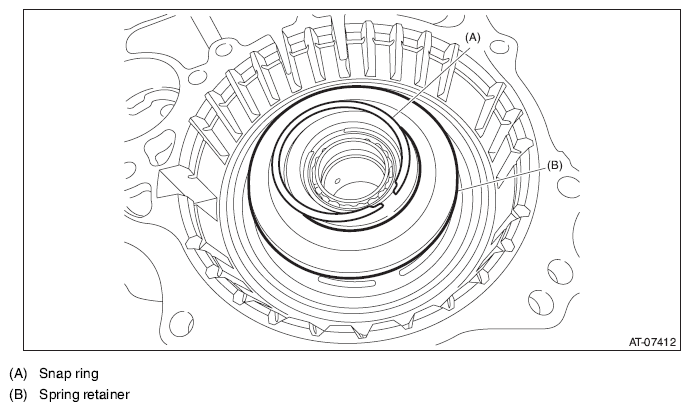

Using the ST, remove the snap ring and spring retainer.

Fig 4: Removing Snap Ring And Spring Retainer Using ST
Courtesy of SUBARU OF AMERICA, INC.
Remove the return spring.

Fig 5: Identifying Return Spring
Courtesy of SUBARU OF AMERICA, INC.
Remove the reverse brake piston by blowing compressed air intermittently from intermediate case hole.

Fig 6: Locating Reverse Brake Piston
Courtesy of SUBARU OF AMERICA, INC.
