Throttle body ASSY (FA20): Removal

Disconnection of the battery ground terminal (Refer to Working precautions and notes )
Draining of coolant (SUBARU Super Coolant) (Refer to Coolant (FA20) )
Removal of air cleaner case SUB-ASSY (Refer to V-belt (FA20) )
Removal of throttle body ASSY (with motor)
1. Disconnect the connector for the throttle body ASSY (with motor).

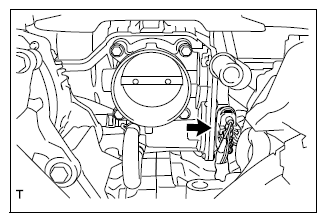

  Fig 1: Locating Throttle Body Assembly Connector (With Motor)
  Courtesy of SUBARU OF AMERICA, INC.
2. Slide 2 clamps, and disconnect the water bypass hose No. 2 and water bypass hose No. 3 from the throttle body ASSY (with motor).

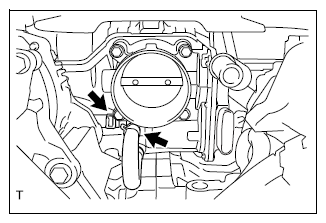

  Fig 2: Locating Throttle Body Assembly Water Bypass Hose Clamps (With Motor)
  Courtesy of SUBARU OF AMERICA, INC.
3. Remove 4 bolts, and remove the throttle body ASSY (with motor) from the intake manifold.
4. Remove the throttle body gasket from the intake manifold.

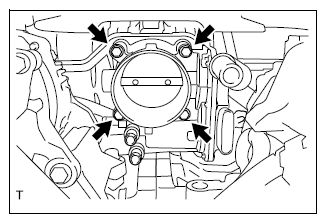

Fig 3: Locating Throttle Body Assembly Bolts (With Motor)
Courtesy of SUBARU OF AMERICA, INC.
