Power Door Lock Control System
>>
Power door lock control system
>>
System Diagram
September 30: LEMON manuals is back up on a temporary server! Slowness is possible
System Diagram

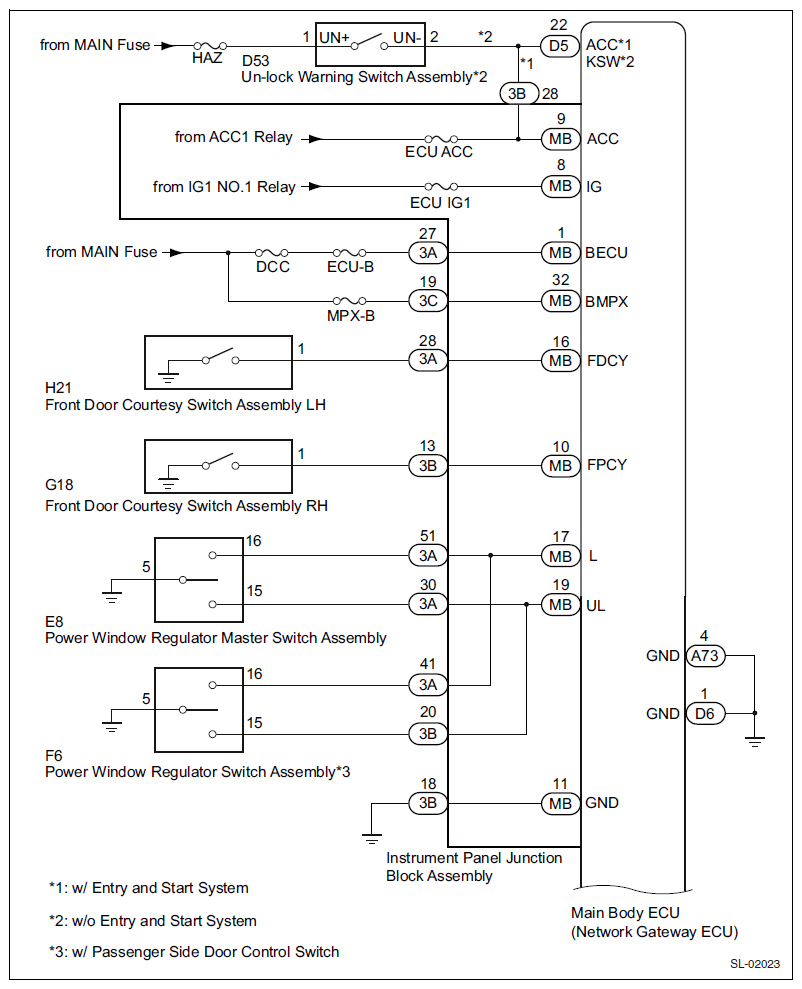

Fig 1: Power Door Lock Control System Diagram (1 Of 2)
Courtesy of SUBARU OF AMERICA, INC.
Fig 2: Power Door Lock Control System Diagram (2 Of 2)
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
