Window defogger system
>>
Circuit figure
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Circuit figure
Fig 1: Window Defogger System - Circuit Diagram (1 Of 2)
Courtesy of SUBARU OF AMERICA, INC.

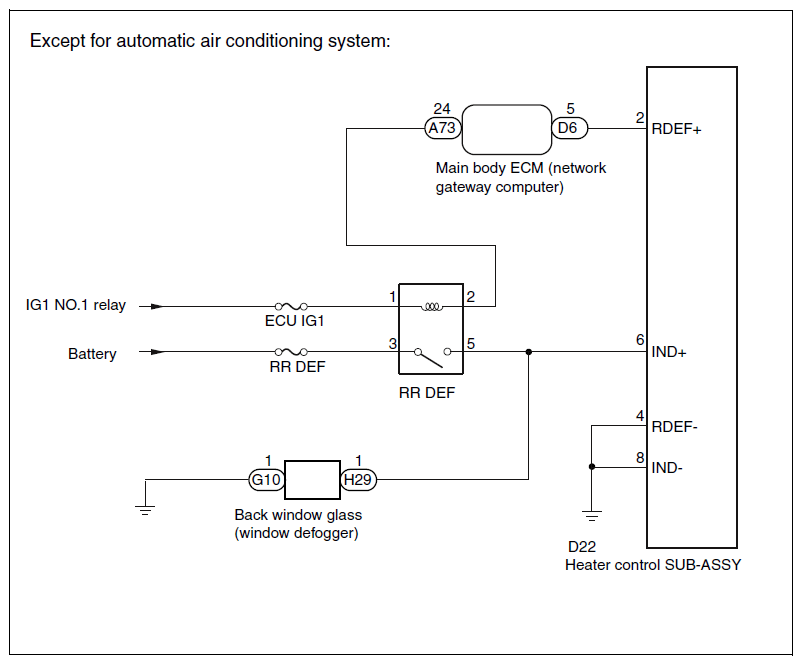

Fig 2: Window Defogger System - Circuit Diagram (2 Of 2)
Courtesy of SUBARU OF AMERICA, INC.
