VDC OFF Switch: Inspection

  1. Disconnect the VDC OFF switch connector.
  2. Check the resistance between the VDC OFF switch terminals.

    PREPARATION TOOL:

    Circuit tester

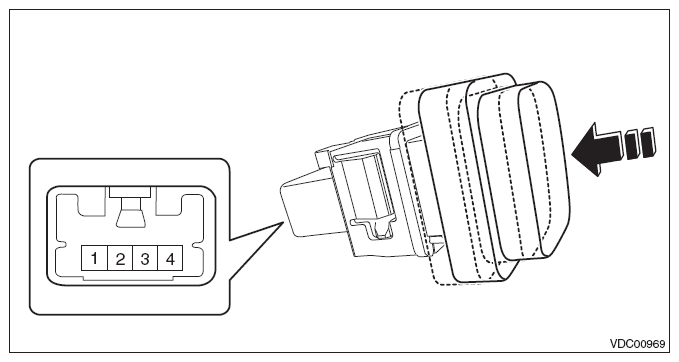

    Fig 1: Disconnecting VDC Off Switch Connector
    G08314762Courtesy of SUBARU OF AMERICA, INC.
    Terminal No. Inspection conditions Standard
    2 - 3 Switch OFF 1 MΩ or more
      Switch ON Less than 1 Ω
  3. Replace the VDC OFF switch if the inspection result is not within the standard value.
