VDC OFF Switch: Removal

  1. Disconnect the ground cable from battery. Ref. to BATTERY .
  2. Remove the cover assembly - instrument panel LWR driver OUT. Ref. to REMOVAL , Instrument Panel Lower Cover.
  3. Remove the screws and release the claws, then detach the cover.

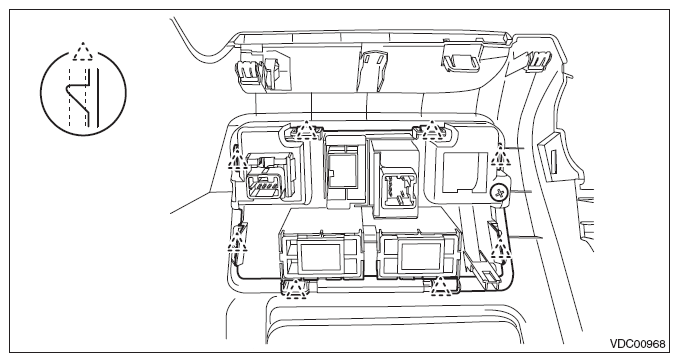

    Fig 1: Identifying Instrument Panel Cover Mounting Clips And Screw
    G08314760Courtesy of SUBARU OF AMERICA, INC.
  4. Release the claws and remove the VDC OFF switch.

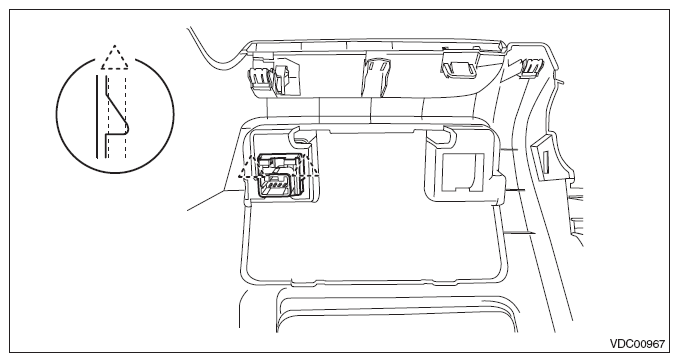

Fig 2: VDC Off Switch Claws
G08314761Courtesy of SUBARU OF AMERICA, INC.
