Battery Temperature Sensor

  1. Remove the battery. Ref. to REMOVAL , Battery.
  2. Remove the clip, and remove the battery temperature sensor from the bracket.

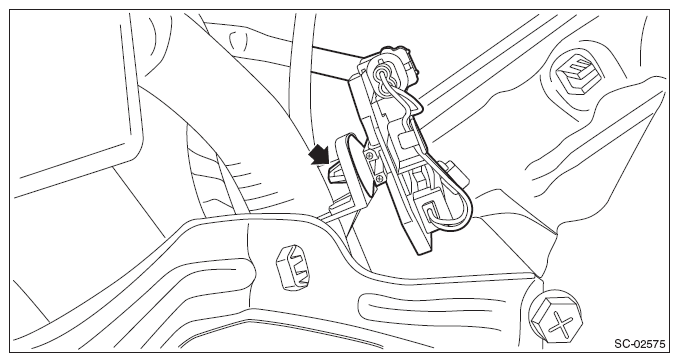

    Fig 1: Removing Battery Temperature Sensor From Bracket
    G08317388Courtesy of SUBARU OF AMERICA, INC.
  3. Disconnect the connector and remove the battery temperature sensor.

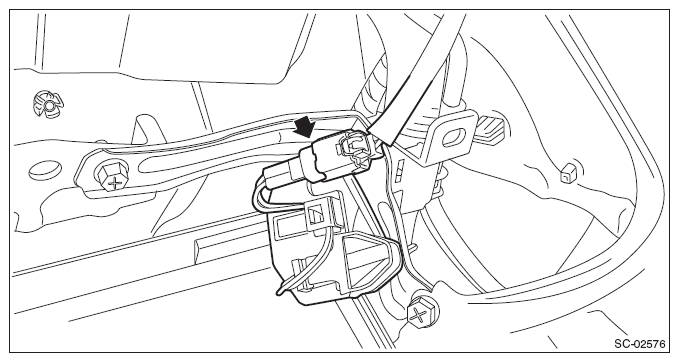

Fig 2: Removing Battery Temperature Sensor
G08317389Courtesy of SUBARU OF AMERICA, INC.
