Starting System & Charging System (H4DO): Generator: Removal

Remove the V-belt covers.

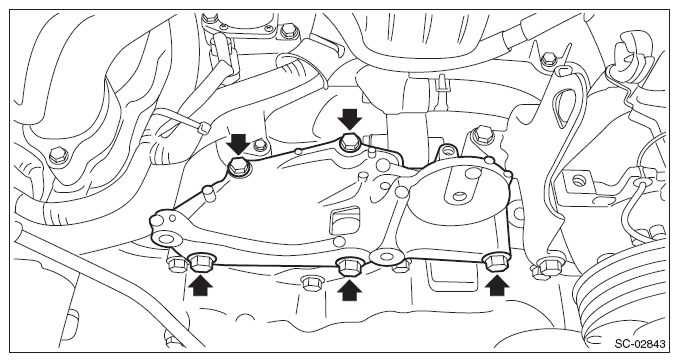

Fig 1: Locating V-Belt Cover Bolt
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the ground cable from battery. Ref. to BATTERY .
Remove the V-belts. Ref. to V-belt , REMOVAL, V-belt.

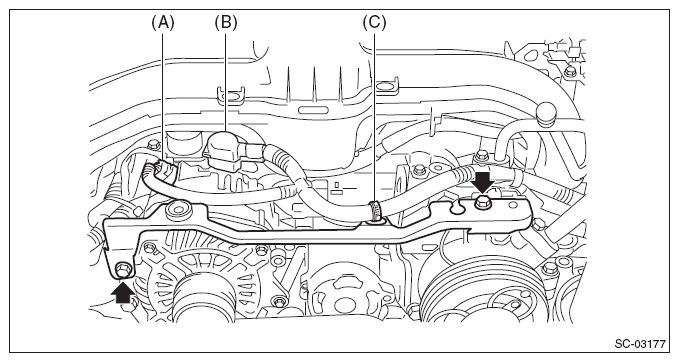

Disconnect the connector (A) and terminal (B) from the generator, and remove the clip (C).
Remove the V-belt cover bracket.

Fig 2: Locating V-Belt Cover Bracket Bolts
Courtesy of SUBARU OF AMERICA, INC.
Remove the generator from the generator bracket.

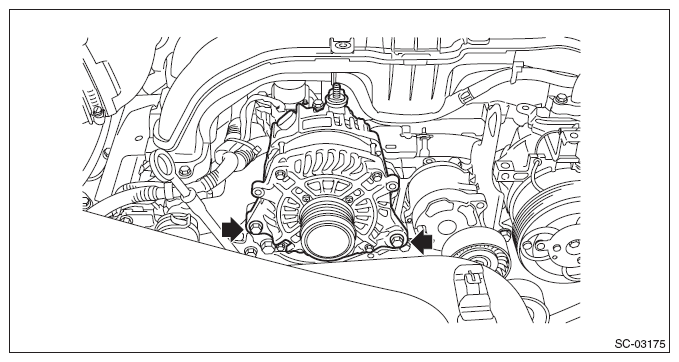

Fig 3: Removing Generator From Generator Bracket
Courtesy of SUBARU OF AMERICA, INC.
Remove the V-belt tensioner assembly. Ref. to V-belt , REMOVAL, V-belt.
Remove the generator bracket from the engine.

Fig 4: Removing Generator Bracket From Engine

Courtesy of SUBARU OF AMERICA, INC.
