Forward Clutch Assembly

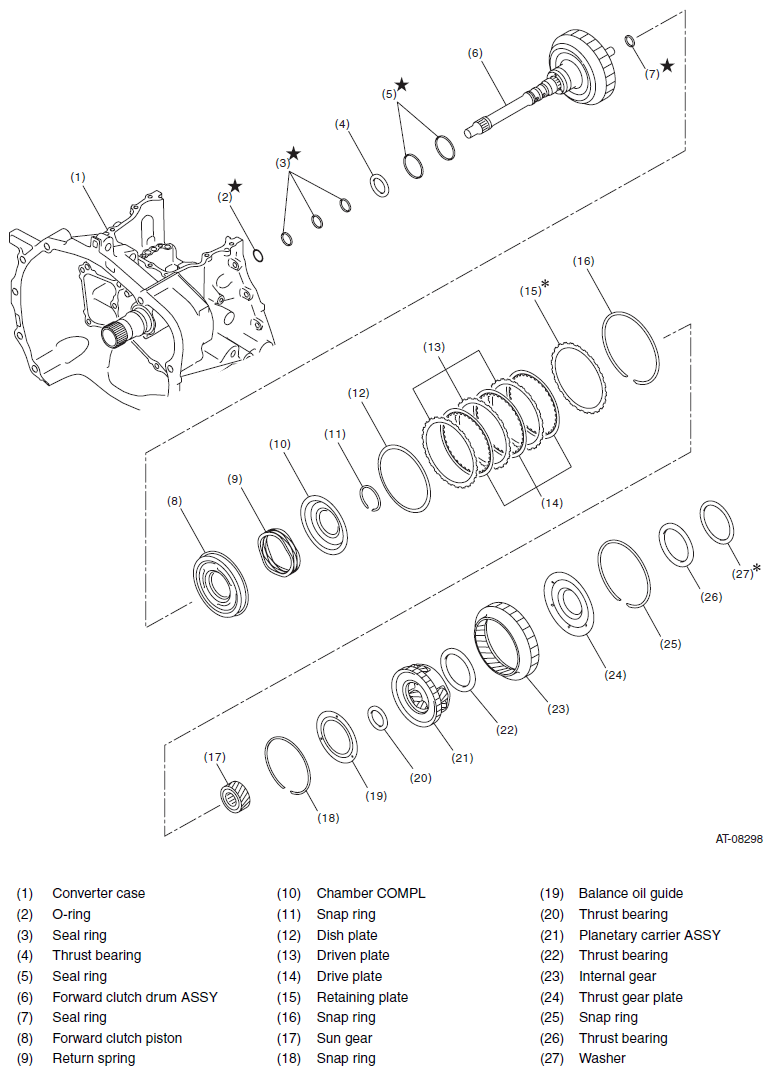

Fig 1: Exploded View Of Forward Clutch Assembly
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
