Engine Wiring Harness: Removal

Disconnect the ground terminal from battery sensor. Ref. to NOTE>NOTE>BATTERY .
Remove the intake manifold assembly. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DO)>Intake Manifold Assembly>REMOVAL .
Disconnect each connector to remove the engine wiring harness.

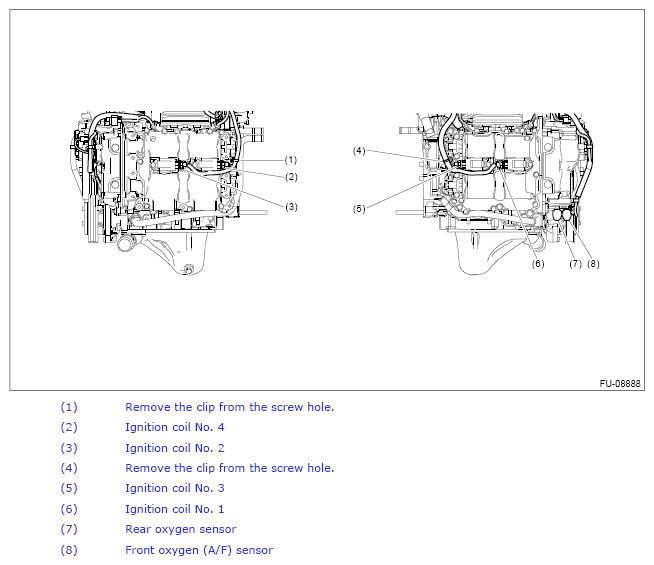

- Structural diagram 1

  Fig 1: Engine Wiring Harness Structural Diagram 1
  Courtesy of SUBARU OF AMERICA, INC.

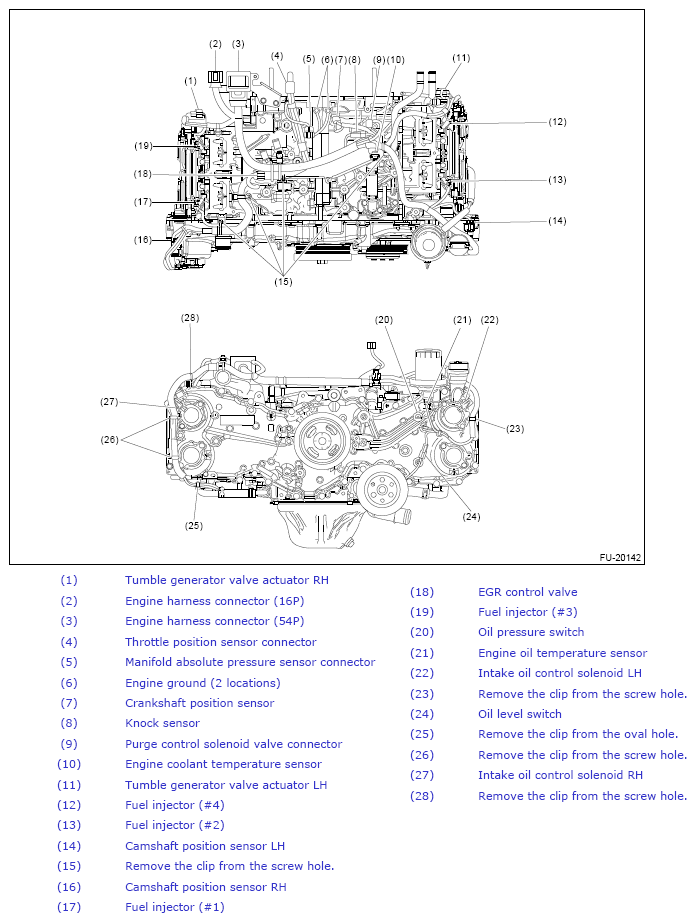

- Structural diagram 2

Fig 2: Engine Wiring Harness Structural Diagram 2

Courtesy of SUBARU OF AMERICA, INC.
