Engine Control System (Diagnostics) (P0171 To P0685)
>>
Diagnostic Procedure with Diagnostic Trouble Code (DTC)
>>
DTC P062F: Internal Control Module EEPROM Error
>>
Component Description
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Component Description

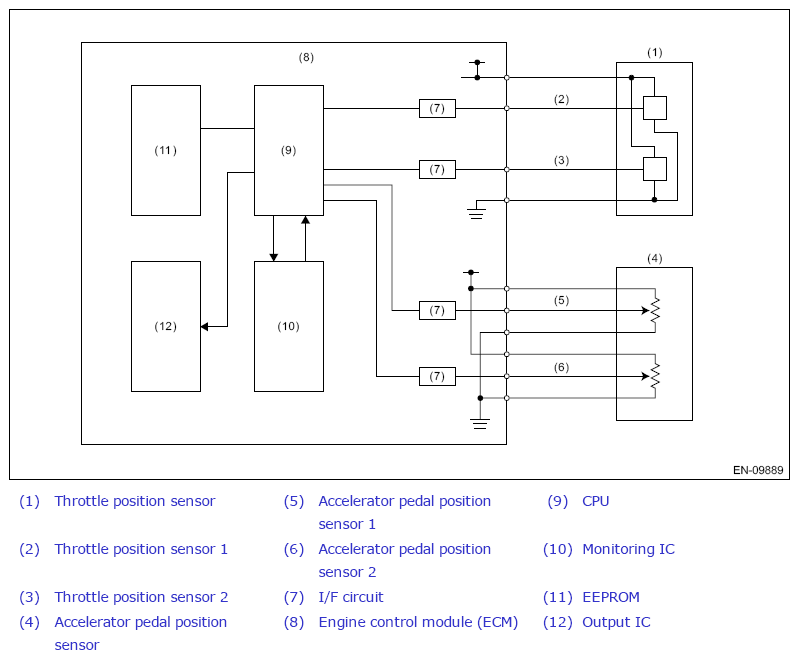

Fig 1: Throttle Position Sensor Communication Diagram
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
