Oil Level Switch: Removal

  1. Disconnect the ground terminal from battery sensor. Ref. to BATTERY
  2. Remove the under cover. Ref. to REMOVAL , Front Under Cover.
  3. Drain the engine oil. Ref. to REPLACEMENT , Engine Oil.
  4. Disconnect the oil level switch connector from the engine harness, and remove the clip (A) securing the harness.

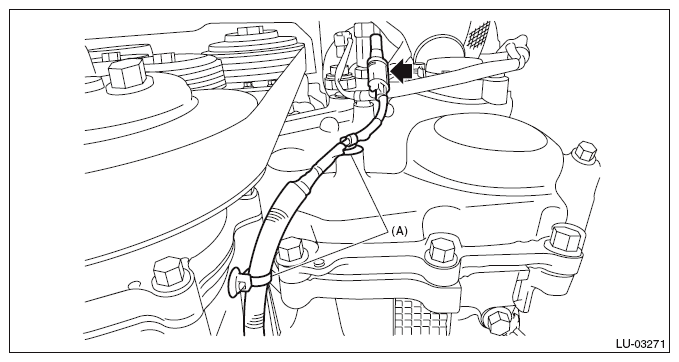

    Fig 1: Identifying Oil Level Switch Connector
    G10263077Courtesy of SUBARU OF AMERICA, INC.
  5. Remove clip (A) from the oil pan upper, and remove the oil level switch.
    Fig 2: Identifying Oil Level Switch Bolts
    G08580513Courtesy of SUBARU OF AMERICA, INC.
