Radiator And Radiator Fan

WARNING: This page is about a different variant/trim than selected.

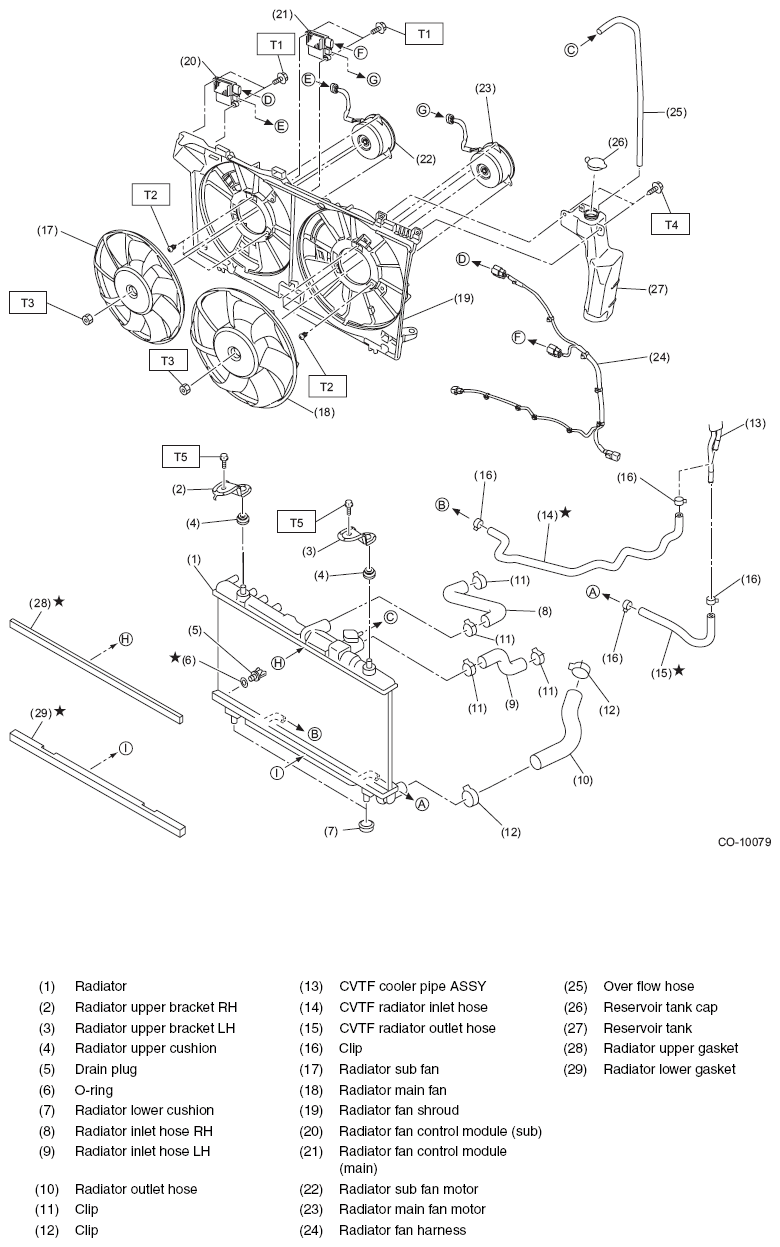

Fig 1: Exploded View Of Radiator And Radiator Fan Replacement Components

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 2.6 (0.3, 1.9)

T2: 3.9 (0.4, 2.9)

T3: 6.4 (0.7, 4.7)

T4: 7.5 (0.8, 5.5)

T5: 12 (1.2, 8.9)
