Continuously Variable Transaxle (CVT) (Diagnostics): Electrical Component Location: Location: Sensor

• ENGINE TYPE FB

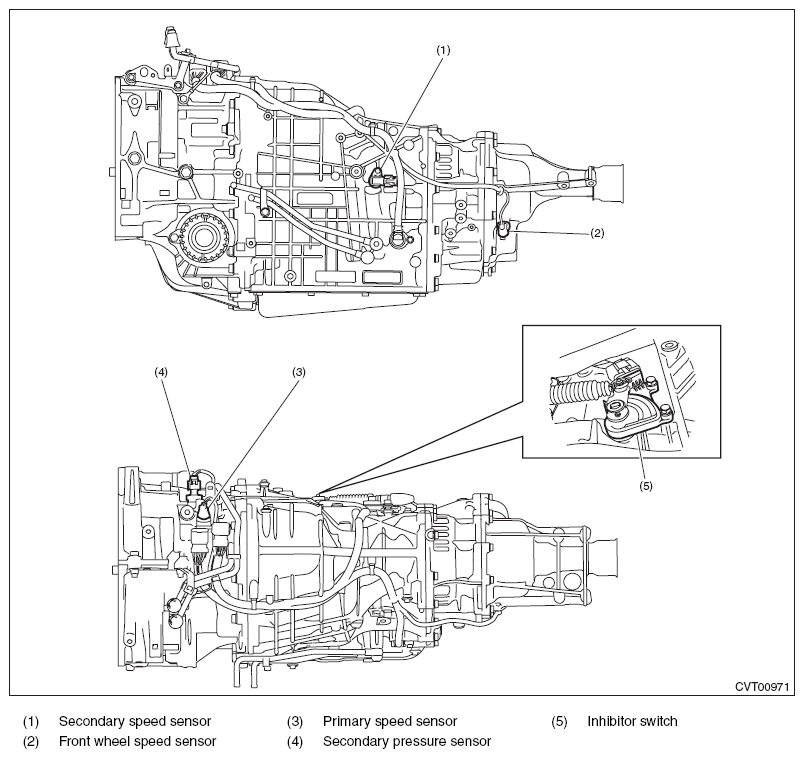

  Fig 1: Sensor Electrical Component Location (Engine Type FB)

  Courtesy of SUBARU OF AMERICA, INC.
• ENGINE TYPE EZ

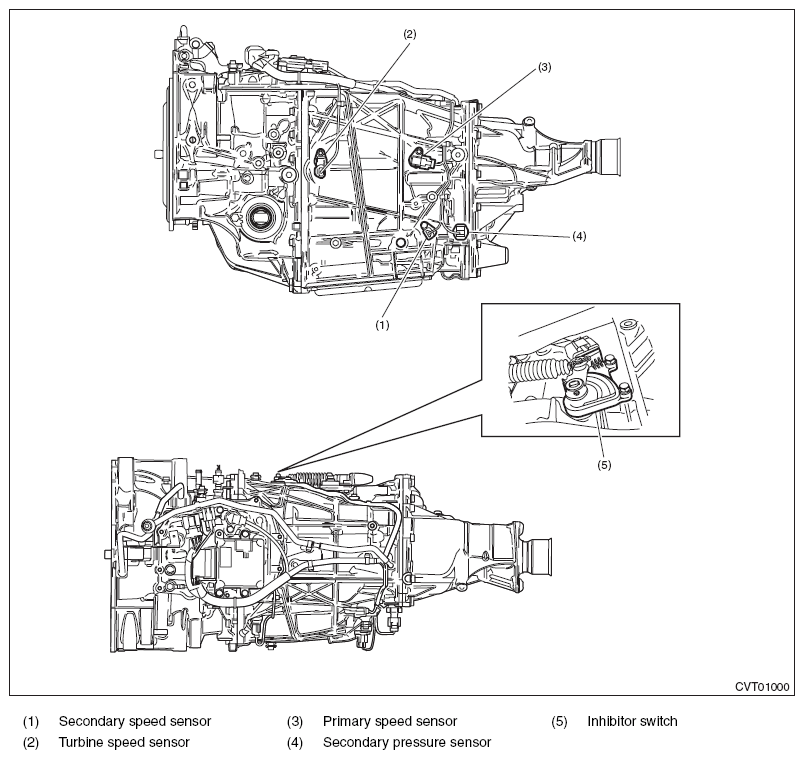

Fig 2: Sensor Electrical Component Location (Engine Type EZ)

Courtesy of SUBARU OF AMERICA, INC.
