Data Communication Module

  1. Disconnect the ground terminal from battery sensor. Ref. to BATTERY
  2. Remove the center grille assembly. Ref. to CENTER GRILLE ASSEMBLY , REMOVAL, Air Vent Grille.
  3. Remove the heater control assembly. Ref. to REMOVAL , Control Panel.
  4. Remove the audio assembly or navigation assembly. Ref. to REMOVAL , Audio.
  5. Remove the data communication module.
    1. Remove the screws.
    2. Remove the audio bracket or navigation bracket, and then remove the data communication module.
    CAUTION: Do not drop or apply any impact to the data communication module.

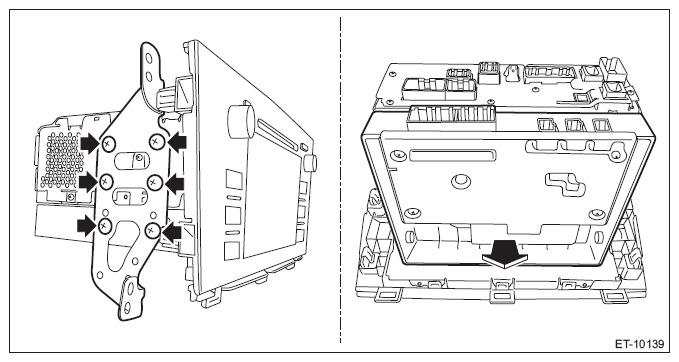

    Fig 1: Removing Data Communication Module
    G10309166Courtesy of SUBARU OF AMERICA, INC.
