Starting System & Charging System (H6DO): Generator: Installation

Install the generator bracket to the engine.
Tightening torque:

36 N.m (3.7 kgf-m, 26.6 ft-lb)
Temporarily attach the bolts (A) and generator plate (B) to the generator.
Temporarily fit the generator in the groove (C) of the A/C compressor bracket.

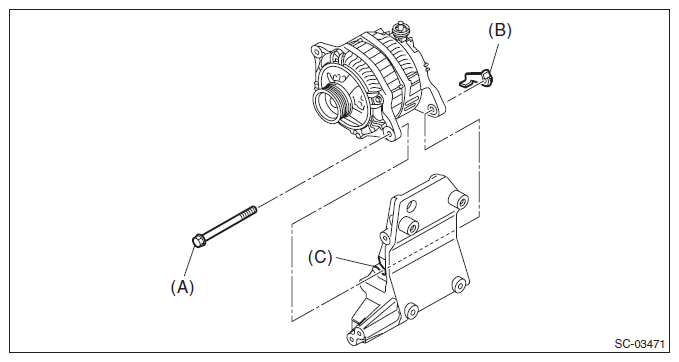

Fig 1: Identifying Generator Bolts, Plate And A/C Compressor Bracket And Groove
Courtesy of SUBARU OF AMERICA, INC.
Temporarily fit the collector cover bracket.
Tighten the generator and collector cover bracket in the numerical order.
Tightening torque:

T1: 6.4 N.m (0.7 kgf-m, 4.7 ft-lb)

T3: 25 N.m (2.5 kgf-m, 18.4 ft-lb)
Install the harness cover (C) to the collector cover bracket.
Connect the connector (A) to the generator, and install the terminal (B).
Tightening torque:

T2: 15 N.m (1.5 kgf-m, 11.1 ft-lb)

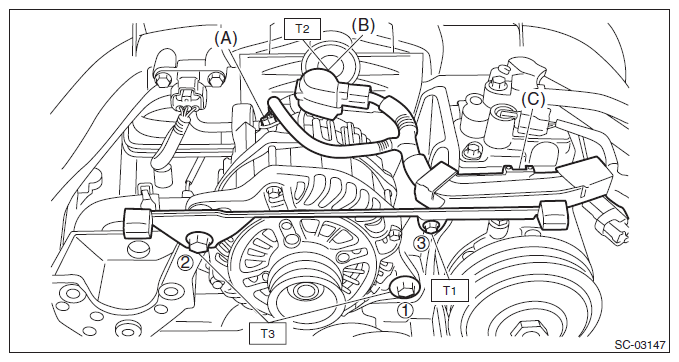

Fig 2: Installing Harness Cover To Collector Cover Bracket
Courtesy of SUBARU OF AMERICA, INC.
Install the tensioner assembly.
Tightening torque:

20 N.m (2.0 kgf-m, 14.8 ft-lb)
Install the V-belts. Ref. to INSTALLATION , V-belt.
Connect the ground terminal to battery sensor. Ref. to BATTERY
NOTE: Repair Contents.
Install the collector cover.
