Continuously Variable Transaxle (CVT) (H6DO)
>>
General Description
>>
Components With Torque Specifications
>>
Transmission Control Device
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Transmission Control Device

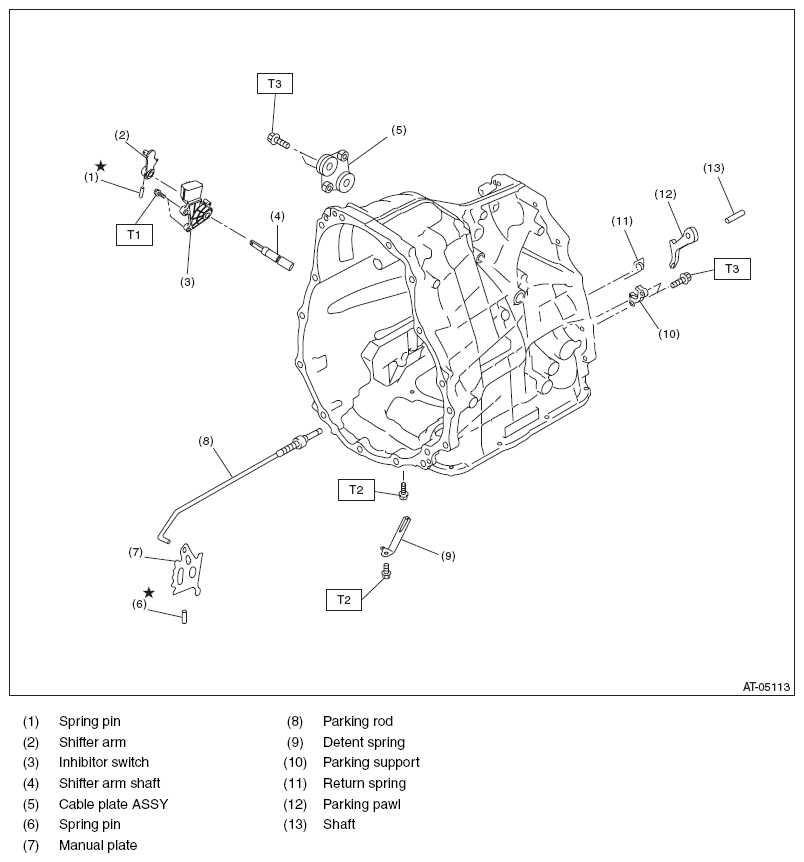

Fig 1: Exploded View Of Transmission Control Device Replacement Components
Courtesy of SUBARU OF AMERICA, INC.
Tightening torque: N.m (kgf-m, ft-lb)
T1: 5 (0.5, 3.7)
T2: 7 (0.7, 5.2)
T3: 25 (2.5, 18.4)
Courtesy of SUBARU OF AMERICA, INC.
