Transmission Control Module (TCM): Installation
- Install the TCM.
Tightening torque:
7.5 N.m (0.8 kgf-m, 5.5 ft-lb)

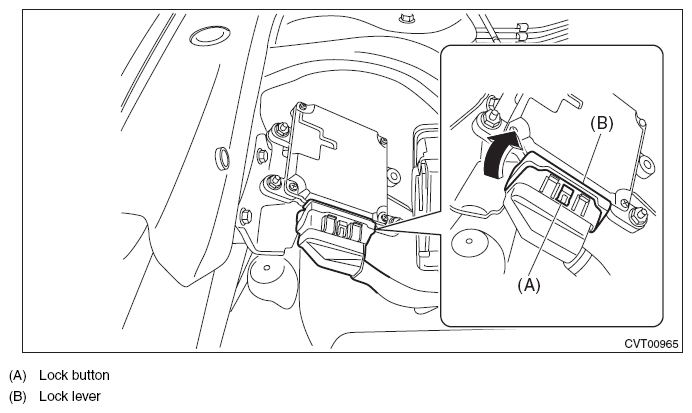

- Install the harness connector to TCM.NOTE:
- Install the connector in the reverse order of removal.
- Move the lock lever in the arrow direction, and confirm that a clicking sound is heard.
- Install the air cleaner case. Ref. to INSTALLATION , Air Cleaner Case.
- Connect the ground terminal to battery sensor. Ref. to
BATTERYNOTE: Repair Contents.
- Perform the operation of AT learning mode. Ref. to LEARNING CONTROL
