Transmission Control Module (TCM): Removal

  1. Disconnect the ground terminal from battery sensor. Ref. to BATTERY
    NOTE: Repair Contents.
  2. Remove the air cleaner case. Ref. to REMOVAL , Air Cleaner Case.
  3. Move the lock lever in the arrow direction while pressing the lock button, and disconnect the connector.

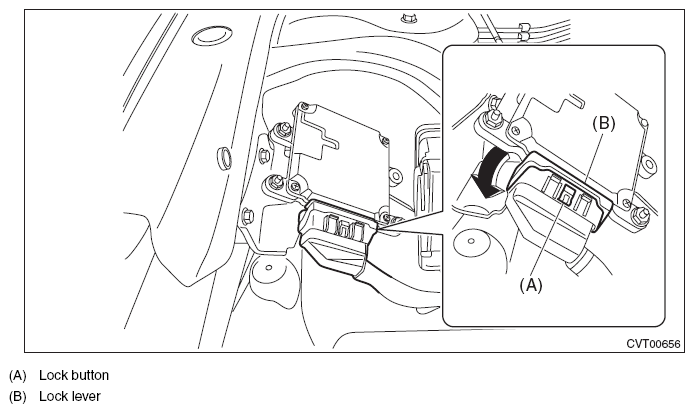

    Fig 1: Moving Connector Lock Lever
    G11575034Courtesy of SUBARU OF AMERICA, INC.
  4. Remove the TCM.

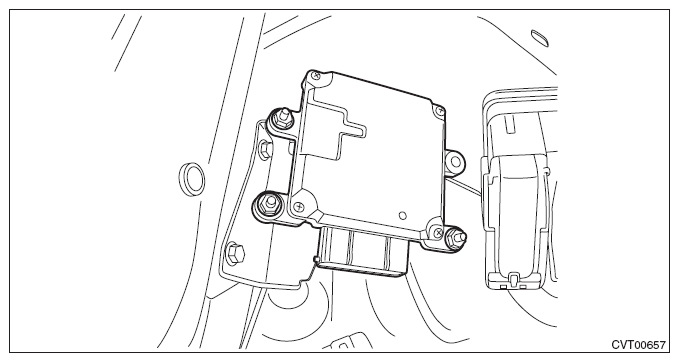

Fig 2: Identifying TCM
G10276113Courtesy of SUBARU OF AMERICA, INC.
